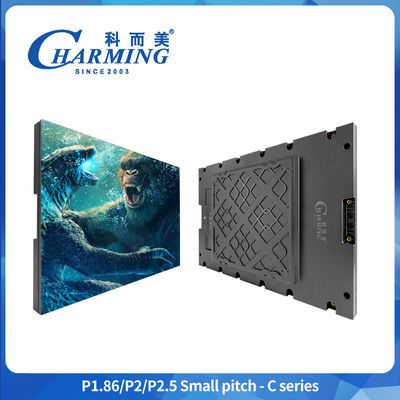

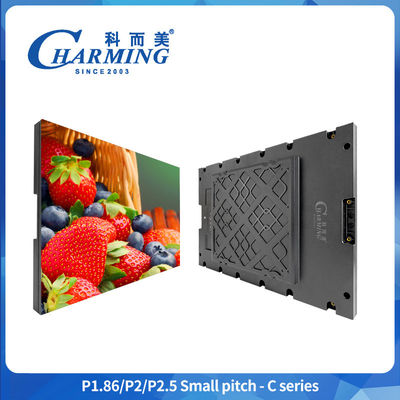

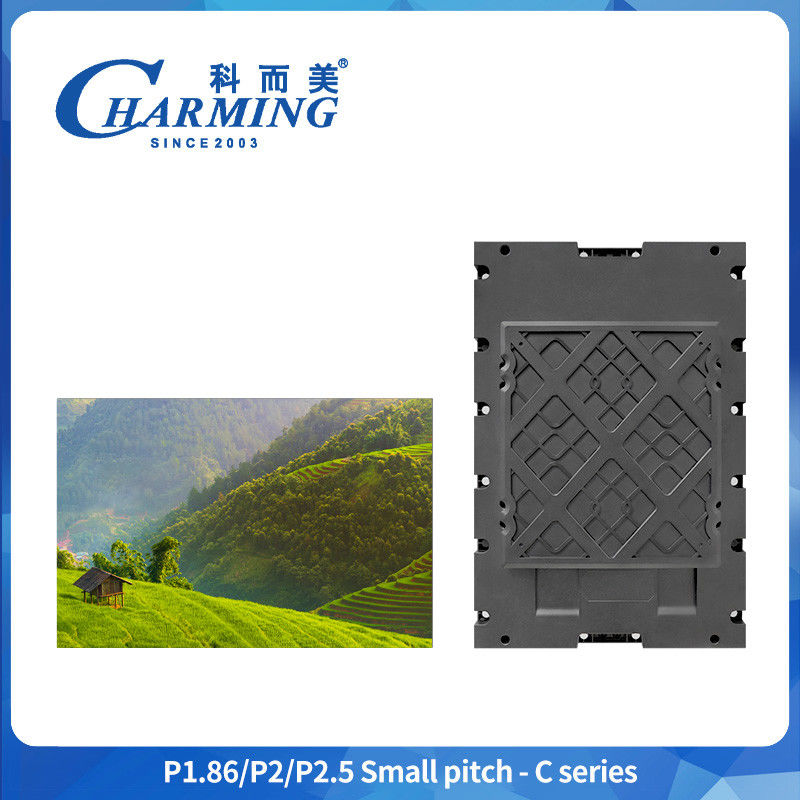

Small Pixel Pitch C Series Indoor LED Video Wall Display P1.86 P2 P2.5 P3 Anti Led Digital Display Board
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Dimension(MM): | 320 X480 Mm | MaxPower(w): | 80 |
|---|---|---|---|
| Cabinet Weight(KG): | 2.42 K G/pcs Weight | Refresh Rate (Hz): | 3840Hz To 1920 Hz |
| Pixel Pitch(MM): | 1. 86 / 2 / 2.5 MM Pixel | LED Standard: | SMD 1515 /SMD 2020 Lamps |
| Brightness (CD/㎡）: | 800 CD /㎡ | Viewing Angle: | 140 ° |
| Protection Level: | IP 45 Indoor | ||
| High Light: | LED Video Wall Display P2.5,Small Pixel LED Video Wall Display |
||
Product Description
Small Pixel Pitch C series indoor LED P1.86 P2 P2.5 P3 Anti Led Digital Display Board LED Wall
Product introduction:
1) Light weight and slim design;
2) 100% front maintenance service available;
3) 27" golden aspect ratio 16:9 cabinet size;
4) High gray scal;
5) High refresh rate;
Product details
1,Seamless connection: special connector design makes it very easy to install, reducing gaps between modules.
2,According to customers' requirements, our product can be designed with different shapes.
3,Integrated module, receiving cardand power supply. Reserve interfacesto reduce external cables.More concise overall.
4,The special splicing design realizes a variety of styles, so that the products meet the diverse requirements of customers.
Product parameters
| Dimension(MM) | 320x480x52MM |
| Pixel Pitch(MM) | 1.86 / 2 / 2.5MM |
| LED Standard | SMD1515/SMD2020 |
| Scan Mode | 1/43Scan |
| Pixel Density(Dot/㎡) | 289050Dot/㎡ / 250000Dot/㎡ / 160000Dot/㎡ |
| Max.Power(w) | 80W |
| Cabinet Weight(KG) | 2.42KG |
| Refresh Rate (Hz) | 3840Hz |
| Brightness (CD/m²) | 800CD/㎡ 600CD/㎡ |
| ViewingAngle | 130° |
| Protection Level | IP40 |
| Cabinet Material | Diecast Aluminium |
| Maintenance Method | Front Maintenance |
| Grey Level | 16 Bit |
| WorkingTemperature | -20-70℃ |
| WorkingHumidity | 10%~65%RH |
| Life Span | 50000Hours |
| WorkingVoltage | AC 110V220V,50 60HZ |
Company profile
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
It has obtained nearly 100 patents and obtained ISO9001, CCC, CE, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 20 years.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
1.The price depends on the quantity. We can offer you the best competitive price at the market with the same even better quality
2. Your inquiry will be replied by well-trained and experienced staffs in 24 hours
3. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
4. Help you design OEM&ODM or any your customized lightings and put into production
5. Distributorship are offered for your unique design and some our current models
6. Your sales area, ideas of design and all your private information will be well protected
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success price panel led module p6 smd outdoor
Thanks for your viewing ,if you are interested ,pls sent me inquiry ! ! !
