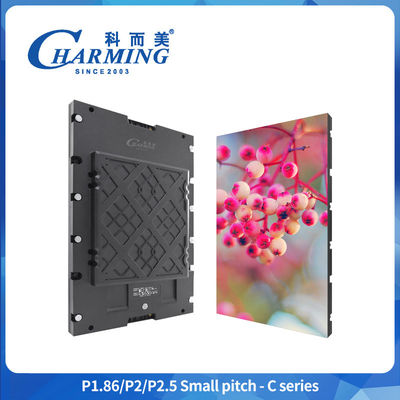

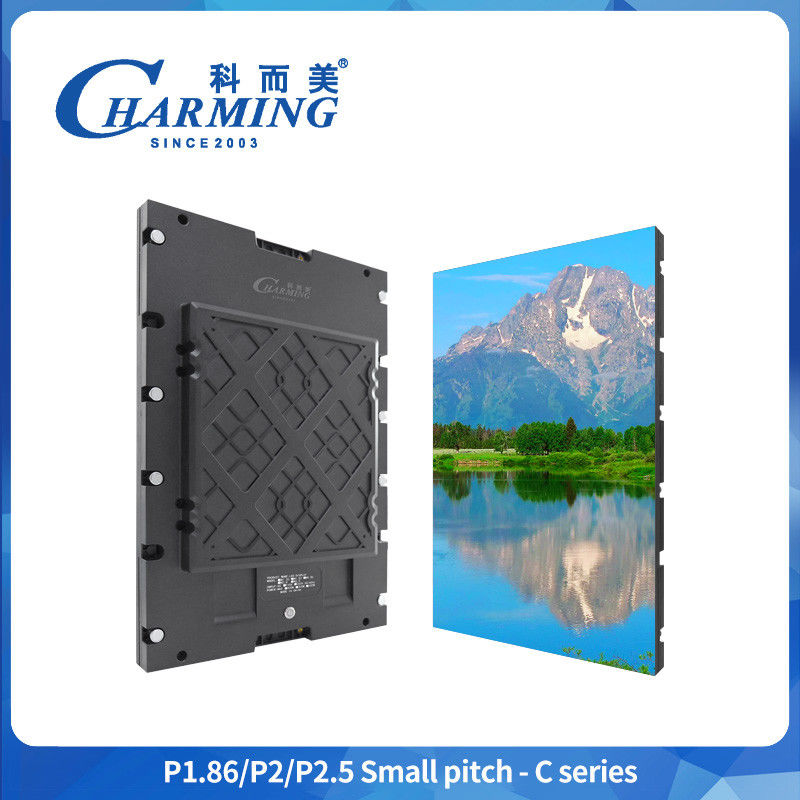

320x480mm Fine Pitch LED Display 1.86mm 2mm 2.5mm Pixel Pitch HD Advertising LED Video Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Dimension(MM): | 320x480x52MM | MaxPower(w): | 80W |
|---|---|---|---|
| Cabinet Weight(KG): | 2.42KG | Refresh Rate (Hz): | 3840Hz / 1920 |
| Pixel Pitch(MM): | 1.86 / 2 / 2.5MM | LED Standard: | SMD1515/SMD2020 |
| Brightness (CD/㎡）: | 600CD/㎡ | Viewing Angle: | 130° |
| Protection Level: | IP40 | Grey Level: | 14-16 Bit |
| High Light: | 1.86mm Fine Pitch LED Display,Fine Pitch LED Display Advertising |
||
Product Description
LED 640x480mm Indoor Fine Pitch LED Display 1.86mm 2mm 2.5mm Pixel Pitch HD Advertising LED Video Wall
Product introduction:
1) Ultra thin and light weight design
2) simplifies installation
3) Ultra broad perspective
4) High gray scal
5) High refresh rate
Product details
2)The grayscale levelis the decisive factor in displaying colors. The higher the grayscalelevel, the richer the displayed colors and the more delicate the image.
Product parameters
| Dimension(MM) | 320x480x52MM |
| Pixel Pitch(MM) | 1.86 / 2 / 2.5MM |
| LED Standard | SMD1515/SMD2020 |
| Scan Mode | 1/43Scan |
| Pixel Density(Dot/㎡) | 289050Dot/㎡ / 250000Dot/㎡ / 160000Dot/㎡ |
| Max.Power(w) | 80W |
| Cabinet Weight(KG) | 2.42KG |
| Refresh Rate (Hz) | 3840Hz |
| Brightness (CD/m²) | 800CD/㎡ 600CD/㎡ |
| ViewingAngle | 130° |
| Protection Level | IP40 |
| Cabinet Material | Diecast Aluminium |
| Maintenance Method | Front Maintenance |
| Grey Level | 16 Bit |
| WorkingTemperature | -20-70℃ |
| WorkingHumidity | 10%~65%RH |
| Life Span | 50000Hours |
| WorkingVoltage | AC 110V220V,50 60HZ |
Company profile
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CCC, CE, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 20 years.
1. How much is the freight ?
The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.
2. What is the warranty ?
1 years Warranty.
3. What is Price per square meter of screen ?
Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
4. Can I customize it ?
Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
5.What is your payment term?
-T/T, Paypal,alibaba or other is ok .This is negotiable.
6.How to choose a best pixel pitch?
Answer: Choose the suitable pixel model according to the closest viewing distance, the smaller the value, the clearer!
