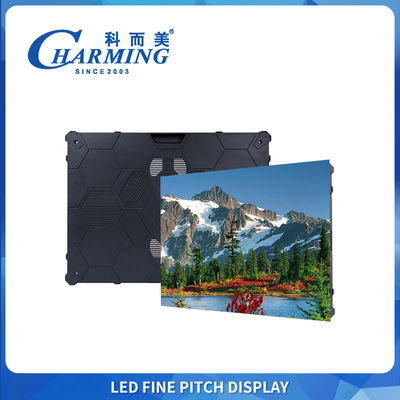

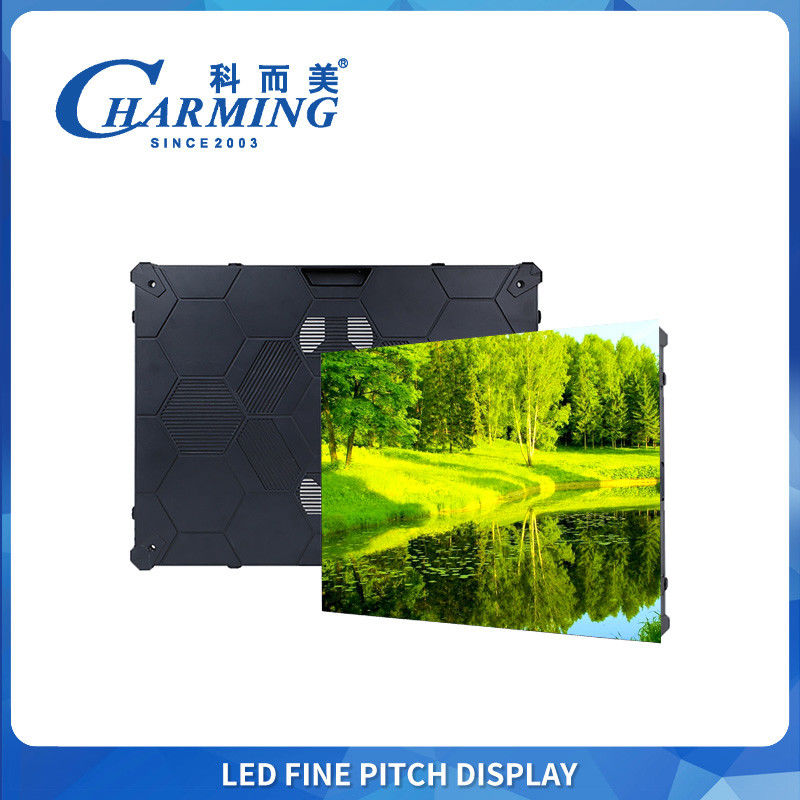

High Performance LED Video Wall Screen 1.86mm 2mm 2.5mm Fin Pixel Pitch LED Video Indoor Display
Product Details:
Place of Origin: | China |
Brand Name: | Charming |
Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
Model Number: | Fine pixel pitch |
Payment & Shipping Terms:
Minimum Order Quantity: | 2 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Carton Case, Wooden Case, Flight Case |
Delivery Time: | 10 Working Days after Payment |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 1000 PCS per week |
Detail Information |
|||
Dimension(MM): | 640 X480mm | PixelPitch(MM): | 1.25MM/1.37MM/1.53MM/ 1.66MM/1.86MM/2MM |
---|---|---|---|
LED Standard: | SMD 1010 / SMD 1515 | Scan Mode: | 1/ 64 Scan |
PixelDensity(Dot/㎡: | 640000 Dot/ ㎡ | Max.PowerlW): | 180W /200 W |
CabinetWeight(KG): | 8KG /16 KG | Refresh Rate (Hz): | 3840 |
Brightness(CD/㎡): | 500 CD /㎡ | Working Temperature: | -20~60℃ |
Highlight: | LED Video Wall Screen 1.86mm,Indoor LED Video Wall Screen |
Product Description
High Performance Led Video Wall Screen 1.86mm 2mm 2.5mm FinPixel Pitch LED Video Indoor Display
Product introduction:
1) waterproof
2) dustproof
3) moisture proof
4) High performanace
5) High refresh rate
Product details
2)The viewing angle: indoor viewing angle greater than 160 degrees, outdoor viewing angle greater than 120 degrees. The size of angle depends on the shape of the LED light-emitting diode













Product parameters
Dimension(MM) | 640X480X85MM |
Pixel Pitch(MM) | 1.25MM/1.37MM/1.53MM/1.66MM/1.86MM/2MM |
LED Standard | SMD1010/SMD1515 |
Scan Mode | 164Scan |
Pixel Density(Dot/㎡) | 640000 Dot/㎡ |
Max.Power(w) | 180W/200W |
Cabinet Weight(KG) | 8KG |
Refresh Rate (Hz) | 3840H2 |
Brightness (CD/m²) | 500CD/㎡ 600CD/㎡ |
ViewingAngle | 140° |
Protection Level | IP40 |
Cabinet Material | Diecast Aluminium |
Maintenance Method | Front Maintenance |
Grey Level | 16 Bit |
WorkingTemperature | -20-60℃ |
WorkingHumidity | 10%~90%RH |
Life Span | 50000Hours |
WorkingVoltage | AC 110V220V,50 60HZ |
Company profile

Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CCC, CE, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 20 years.








1. How much is the freight ?
The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.
2. What is Price per square meter of screen ?
Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
3. What is the warranty ?
1 years Warranty.
4. Can I customize it ?
Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
5.What is your payment term?
-T/T, Paypal,alibaba or other is ok .This is negotiable.
6.How to choose a best pixel pitch?
Answer: Choose the suitable pixel model according to the closest viewing distance, the smaller the value, the clearer!
