HD Shopping Mall Seamless Fine Pitch LED Display Screen P1.86 Full Color
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | P1.2-2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | Small Pixel Pitch Screen | Application: | Indoor Shopping Mall |
|---|---|---|---|
| Cabinet Size: | 640*480*85mm | Refresh Frequency: | 3840HZ |
| Brightness: | >1000cd | Weight: | 6.4kg |
| Life Span: | 50000-100000 | Module Size: | 320*160mm |
| Maintenance Method: | Front Maintenance | ||
| High Light: | Seamless Fine Pitch LED Display,P1.86 Fine Pitch LED Display,Shopping Mall Fine Pitch LED Display |
||
Product Description

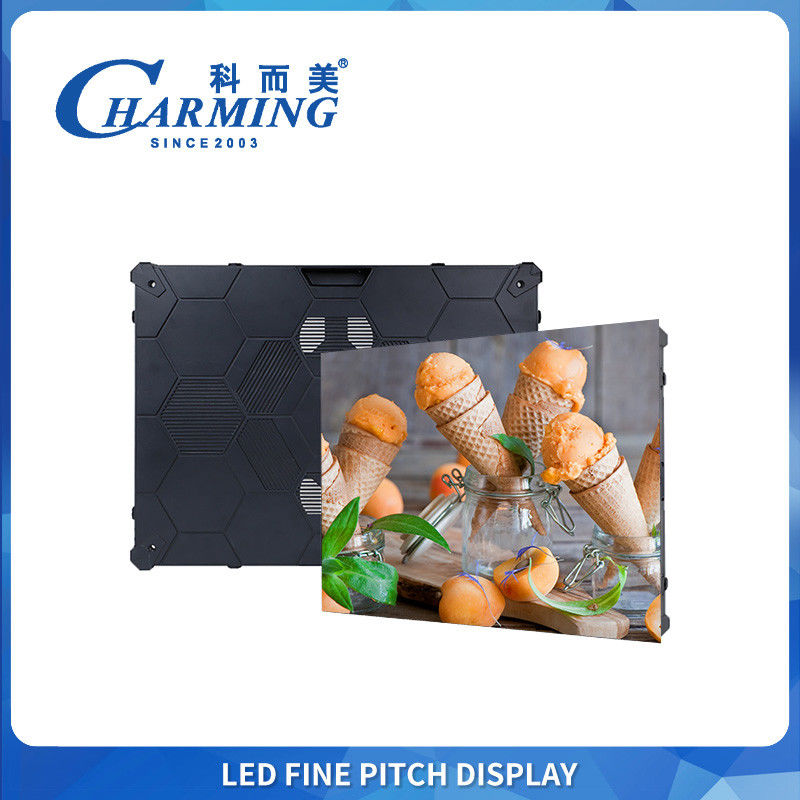

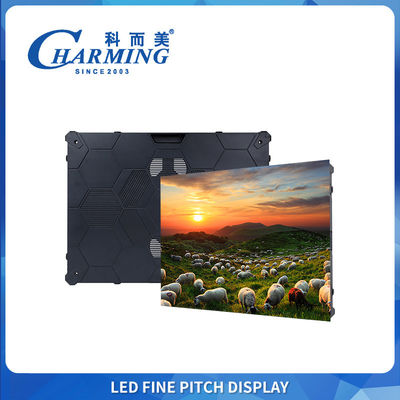

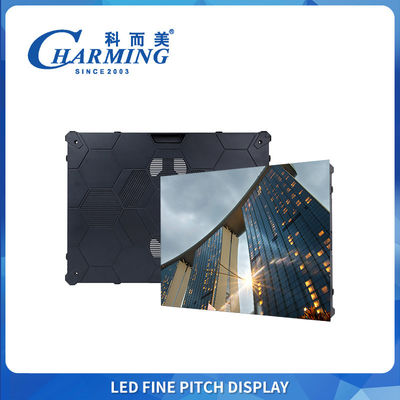

HD LED Indoor Shopping Mall Seamless Display Screen P1.86 Full Color
Product Advantages:
1. Time saving : Quick installation ,fast maintenance ,greatly shorten time of installation, disassemble and repalcement. Time cost declines 40%.
2. Labor-saving: Simple disassemble and easy move. Labor cost declines 50%
3. Material-saving: The thickness of cabinet only 70mm,light and unique ,greatly simplify,the material of install frame which reduce the truss cost etc. Truss cost declines 20%.
4. Worry-saving: Indoor cabinet only weights 6.4KG/unit .Shipping cost decline 30%.
Technical Specification
| Type Number | S1.53 | S1.86 | S2.0 | S2.5 |
| Cabinet Size | 640X480X85MM | 640X480X85MM | 640X480X85MM | 640X480X85MM |
| Pixel Pitch | 1.53MM | 1.86MM | 2.0MM | 2.5MM |
| Screen Brightness | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm |
| Module Size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Screen Resolution | 418*318 | 344*258 | 320*240 | 256*120 |
| Scan Mode | 1/52 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Cabinet Max Power | 200W | 200W | 200W | 200W |
| Refresh Rate | 1920hz/3840hz | |||
| View Angle | 140° | |||
| Weight | 6.5KG | |||
| Material | Die-cast aluminum | |||
| Maintenance | Front Maintenance | |||
| Grey Level | 16 Bit | |||
| Temperature | -20°-60° | |||
| Life Span | ≥500000 | |||
| Voltage | AC110V/220V, 50HZ/60HZ | |||
Details Showing
The standard 16:9 size cabinet supports front/rear maintenance, back wireless design and seam adjustment.
It has realistic picture, high refresh rate, smaller area and larger resolution display.
Application:
Applied in Entertainment complexes, Hotel conference room, Restaurants, Showrooms, Casinos, Government facilities, Theaters, Retail outlets, Traffic control room, Security monitoring room, Stage background, events, HD cinema, Shopping malls, Railway stations, Airports and other indoor advertising and events places.
