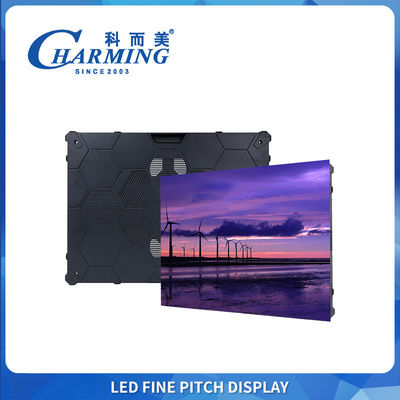

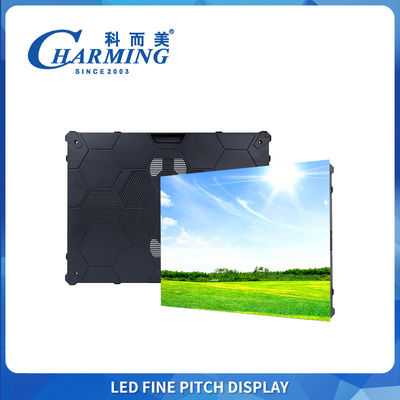

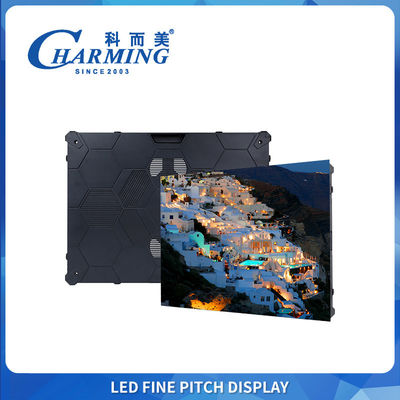

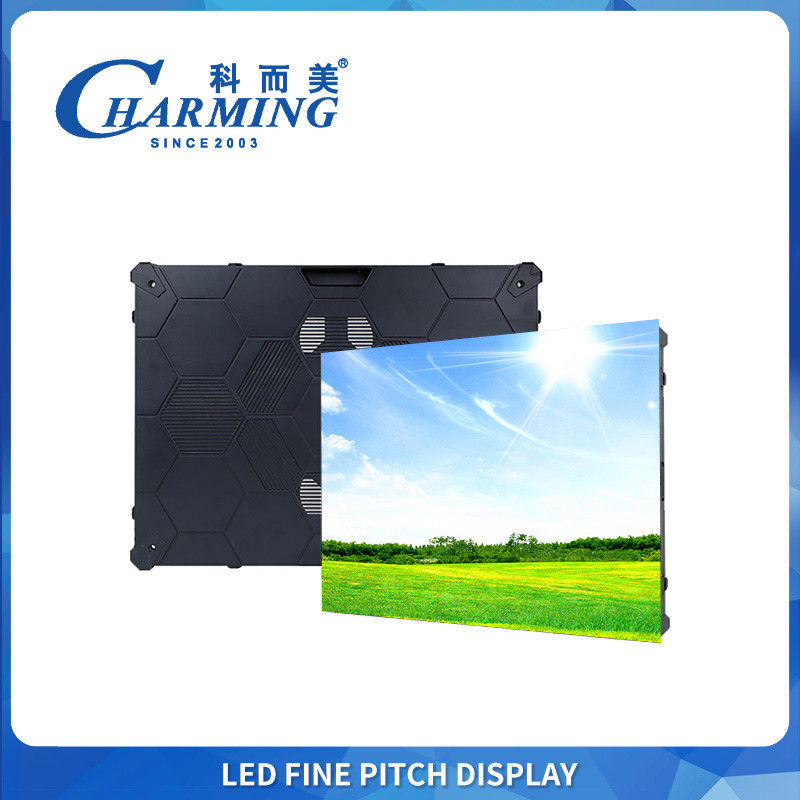

HD Fixed Fine Pitch LED Display P1.53 P1.86 P2 P2.5 Indoor Advertising Billboard
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | P1.2-2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | Small Pixel Pitch Screen | Application: | Indoor Advertising Use |
|---|---|---|---|
| Cabinet Size: | 640*480*85mm | Refresh Frequency: | 3840HZ |
| Weight: | 6.4kg | Life Span: | 50000-100000 |
| Module Size: | 320*160mm | Maintenance Method: | Front Maintenance |
| Brightness: | >1000cd | ||
| High Light: | HD Fixed Fine Pitch LED Display,P2.5 Fine Pitch LED Display |
||
Product Description
P1.53 P1.86 P2 P2.5 Indoor Advertising Billboard HD Fixed Screen Display
Features:
1. Easy to install and disassemble.
2. Indication lights to show status of power and signal status
3. The better quality/price ratio in LED Displays field.
4. Fast cooling: excellent heat dissipation performance to protect the module circuit
5. High refresh rates:With high refresh rates, our products can display flicker-free video images - including live video feed
6. High gray level and good color uniformity with brand IC, led lamp
7. Anti-interference: special anti electronic-magnetic interference function
8. High precision: seamless splicing though CNC machine
9. Seamless connection:The aluminum die-casting technology,togrther with the high precision CNC procession,
Technical Specification
| Type Number | S1.53 | S1.86 | S2.0 | S2.5 |
| Cabinet Size | 640X480X85MM | 640X480X85MM | 640X480X85MM | 640X480X85MM |
| Pixel Pitch | 1.53MM | 1.86MM | 2.0MM | 2.5MM |
| Screen Brightness | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm |
| Module Size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Screen Resolution | 418*318 | 344*258 | 320*240 | 256*120 |
| Scan Mode | 1/52 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Cabinet Max Power | 200W | 200W | 200W | 200W |
| Refresh Rate | 1920hz/3840hz | |||
| View Angle | 140° | |||
| Weight | 6.5KG | |||
| Material | Die-cast aluminum | |||
| Maintenance | Front Maintenance | |||
| Grey Level | 16 Bit | |||
| Temperature | -20°-60° | |||
| Life Span | ≥500000 | |||
| Voltage | AC110V/220V, 50HZ/60HZ | |||
Details Showing
The standard 16:9 size cabinet supports front/rear maintenance, back wireless design and seam adjustment.
It has realistic picture, high refresh rate, smaller area and larger resolution display.
Application:
Applied in Entertainment complexes, Hotel conference room, Restaurants, Showrooms, Casinos, Government facilities, Theaters, Retail outlets, Traffic control room, Security monitoring room, Stage background, events, HD cinema, Shopping malls, Railway stations, Airports and other indoor advertising and events places.
