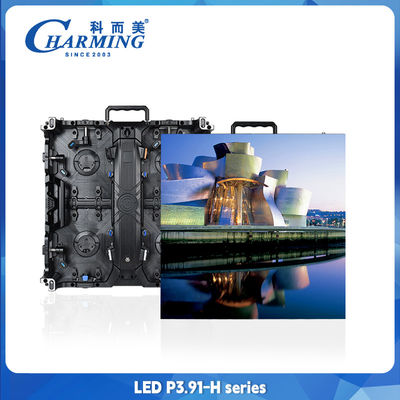

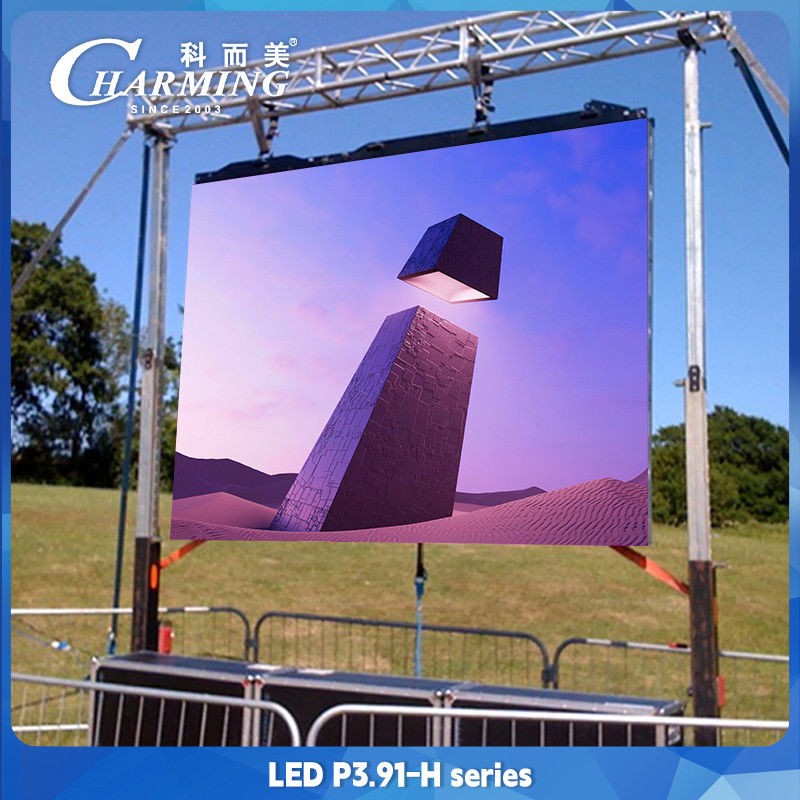

Seamless Splicing Outdoor LED Video Wall P3.91 Flexible LED Video Wall Panels
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | U23-C100 LED Pixel Bar |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case, Fight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 PCS per month |
|
Detail Information |
|||
| Type Number: | R391W-1000H Type | Dimension(MM): | 500×1000 |
|---|---|---|---|
| Cabinet Weight(KG): | 12kg | Refresh Rate（Hz）: | 3840 / 1920 |
| Pixel Pitch(MM): | 3.91mm | LED Standard: | 1921 |
| Scan Mode: | 1/16 | Pixel Density(Dot/㎡): | 65535 |
| Brightness（CD/㎡）: | 4500CD/㎡ Brightness | Viewing Angle: | 130° |
| Protection Level: | IP65 Waterproof | Cabinet Material: | Aluminum Alloy Material |
| Maintenance Method: | Front Maintenance | Grey Level: | 16 |
| Working Temperature: | -10~65℃ | Working Humidity: | 10~90%RH |
| Life Span: | ＞50000 Hour | Working Voltage: | AC 110V/220V,50/60Hz |
| High Light: | Seamless Splicing Outdoor LED Video Wall,P3.91 Flexible Outdoor LED Video Wall |
||
Product Description
Top Selling Seamless Splicing Outdoor Led Video Wall Outdoor P3.91 Flexible Led Video Wall
Product Introduction
1)Front Maintenance
2)Split StructureDesign
3)Seamless Splicing
4)High refresh rate:>1500Hz,no scanning line when photographed.
6)LED lamps failure rate <0.0001
7)Wide viewing angle
Product parameters
|
Type Number
|
R391W-500H |
|
Dimension(MM)
|
500x500x85MM |
| Max.Power(w) | 200W |
| Cabinet Weight(KG) | 778KG |
| Refresh Rate (Hz) | 1920/3840H2 |
| Pixel Pitch(MM) | 391MM |
| LED Standard | SMD1921 |
| Scan Mode | 1/6Scan |
| Pixel Density(Dot/ni) | 65536Dot/m² |
| Brightness (CD/ni) | 4500CD/m² |
| Viewing Angle | 120° |
| Protection Leve | IP65 |
| Cabinet Material | Aluminum alloy |
| Maintenance ethod | Front Maintenance |
| Grey Level | 12-16 Bit |
| Working Temperature | -20-60C |
| Working Humidity | 1036-9036RH |
| Life Span | ≥50000 Hours |
| Refresh Rate(Hz) | AC 110W1220V.50/60H2 |
Product details
1)Ingress protection being IP65, weather proof and dust proof.
2)High brightness uniformity and color uniformity(≥95%)
3)Super thin and light with die-casting aluminum cabinet design.
4)made by Aluminum alloy materialStrong rigidity, oxidation resistance,not easy to deform, smoother splicing.
5)Ultra thin , thickness only 85mm. Light weight: 500x500mm Canbinet only 7.78 kg. 500x1000mm Canbinet only 13.2 kg
6)Using gold-plated connection seat, the signal is more stableFoolproof design to reduce installation error rate.
Company Profile
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 20 years.
Project Cases
AFQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry.
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T, Paypal,alibaba or other is ok .This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
