High Brightness P5 P8 Outdoor Outdoor Led Display Advertising Waterproof
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P5-P8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Key Word: | P5, P8 Outdoor LED Advertising Led Video Wall Displays | Pixel Pitch: | P5mm |
|---|---|---|---|
| Refresh Rate: | 1920HZ-3840HZ | IP Rate: | IP65 |
| Resolution: | 256x192 | Panle Size: | 960/640/1280x960mm |
| Brightness: | ≥6000CD/M² | Weight: | 38.5kg |
| Warranty: | 2 Years | ||
| High Light: | High Brightness P8 Outdoor Led Display,Waterproof P8 Outdoor Led Display,Waterproof P5 Outdoor Led Display |
||
Product Description

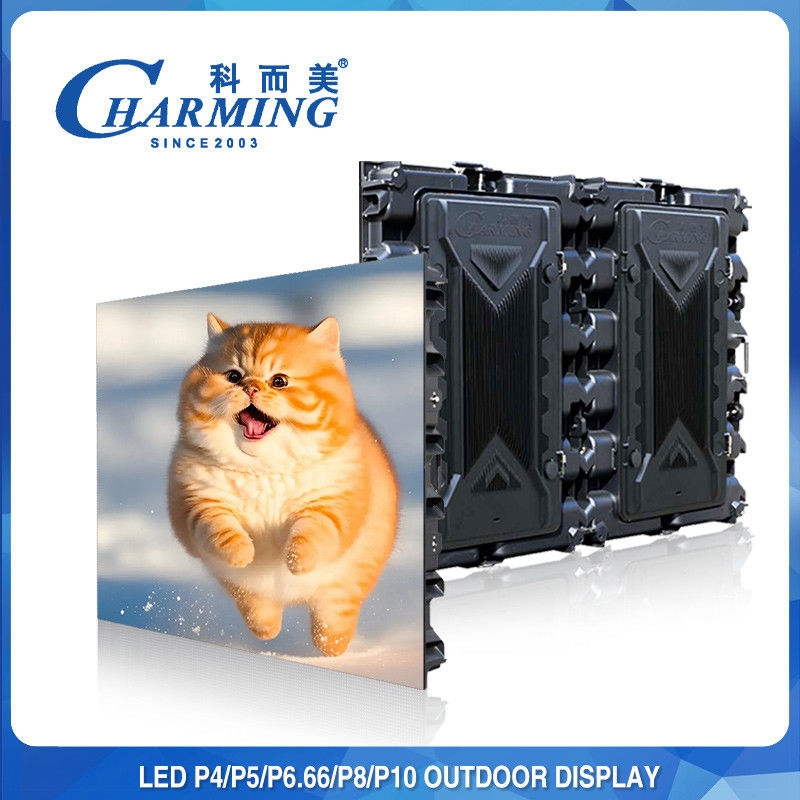

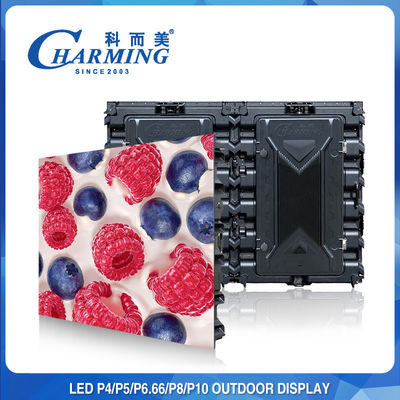

Waterproof High Brightness P5, P8 Outdoor LED Advertising Led Video Wall Displays
Product Description
1. LED lamps: High brightness and anti-static LED lamps.
2. Driving IC: Constant current LED driving IC.
3. A high refresh rate of over 1920-3840Hz, producing best quality outputs in form of pictures, videos and texts.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic.
Technical Specifications
|
Type Number |
M4 |
M5 |
M8 |
|---|---|---|---|
|
Pixel Pitch |
4.0mm
|
5.0mm |
8.0mm |
|
Pixel Density |
62500 Dot/㎡
|
40000 Dot/㎡ |
15625 Dot/㎡
|
|
Scan Type |
1/10 Scan
|
1/8 Scan |
1/5 Scan |
|
Brightness
|
≥5000CD/㎡
|
≥6000CD/㎡
|
≥5500CD/㎡
|
|
Best Viewing Distance
|
≥4M
|
≥5M
|
≥8M
|
| Cabinet Resolution | 320x240 | 256x192 | 160x120 |
| Color | RGB | ||
|
Refresh Rate(Hz) |
3840Hz / 1920Hz |
||
| Cabinet Size | 1280x960mm | ||
|
Module Size |
320x160mm |
||
|
Cabinet Max Power |
1200W |
||
|
Viewing Angle |
130° |
||
|
IP Rate |
IP65 |
||
| Life Span | 100,000 h | ||
|
Cabinet Material |
Magnesium/Aluminum Alloy |
||
|
Maintenance |
Front/Back Service |
||
|
Working Temperature |
-30~60℃ |
||
|
Working Humidity |
10%~90%RH |
||
|
Life Span |
≥50000 Hours |
||
|
Working Voltage |
AC110V/220V, 50/60HZ | ||
| Weight | 38.8kg | ||
Detail Showing
Competitive advantages:
1. 20 years of experience in manufacturing LED screens of different application
2. Implementation of the project on the screen of any complexity
3. faster delivery products from China
4. Technical Support (from design to debug screen display)
♦ Applications
Stage,Sports,advertising,traffic,events,stadium,shopping center,airport,exhibitions, car shows, fashion
shows, concerts, ceremonies, entertainment,etc.
