Outdoor 1200W LED Flexible Display Video Curtain Multipurpose
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P9.375 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Product Name: | P9.375 LED Flexible Display | Pixel Pitch: | 9.375mm |
|---|---|---|---|
| IP Rate: | IP50 / IP65 | Best Viewing Distance: | 9.5M |
| Size: | 300*900mm | Unit Module Weight: | 3KG |
| Unit Module Pixel: | L32*H96 | Refresh Rate: | 3840hz |
| Consumption: | 1200W | Life Span: | ≥50000 Hours |
| High Light: | 1200W LED Flexible Display,Multipurpose LED Flexible Display,Outdoor Flexible LED Video Curtain |
||
Product Description
Outdoor Large LED Flexible Display P9.375 RGB Led Curtain Screen
Product Details
1. PWM High Quality
High refresh rate 3000Hz and high grey control IC. Grey level 65536. Easy maintenance and low power . High transparence and protection level IP65. UV resisitant PC material , meet the temperature rate for using -40℃-60℃.
2. Easy Installation And Fast Connection
Each column is fixed with two 4 wire ropes for outdoor installtion , simplified the steel frame structures a lot , good heat radiation and ventilation without fan and air condition.
3. Ultra Slim And Light Cabinet
The thickest part is just 17mm , the thinnrdt part is only 7mm. Left and right connector ensure separation distance.Ultralight , the weight of single unit is 3/2.5KG.
4.16-Bit Higher Grey Level
Grey level is the decisive factor for displaying the colors . The higher the grey level , the richer the displayed colors and the more delicate the picture.
Cabinet Detail
Die-casting Aluminum cabinet. Strong regidity, no deformation, more accurate splicing , ergonomic structural design easy installation by one person.
Product Parameters
|
Type Number |
P9.375 |
|---|---|
|
Dimension(MM) |
300*900MM |
|
Unit Module Max Power(W) |
135W/M² |
|
Cabinet Weight(KG) |
3KG |
|
Refresh Rate(Hz) |
3840Hz |
|
Pixel Pitch(MM) |
9.375MM |
|
Led Standard |
SMD2727 |
|
Pixel Density(Dot/M²) |
11377 Dot/M² |
|
Brightness(CD/M²) |
≥1500CD/M² |
|
Viewing Angle |
110° |
|
IP Rate |
IP65 |
|
Control Case |
L4*H2 |
|
Control Pixel |
L128*H192MM |
|
Grey Level |
16 bit |
|
Working Temperature |
20~60℃ |
|
Working Humidity |
10%~90%RH |
|
Life Span |
≥50000 Hours |
|
Working Voltage |
AC110V/220V, 50/60Hz |

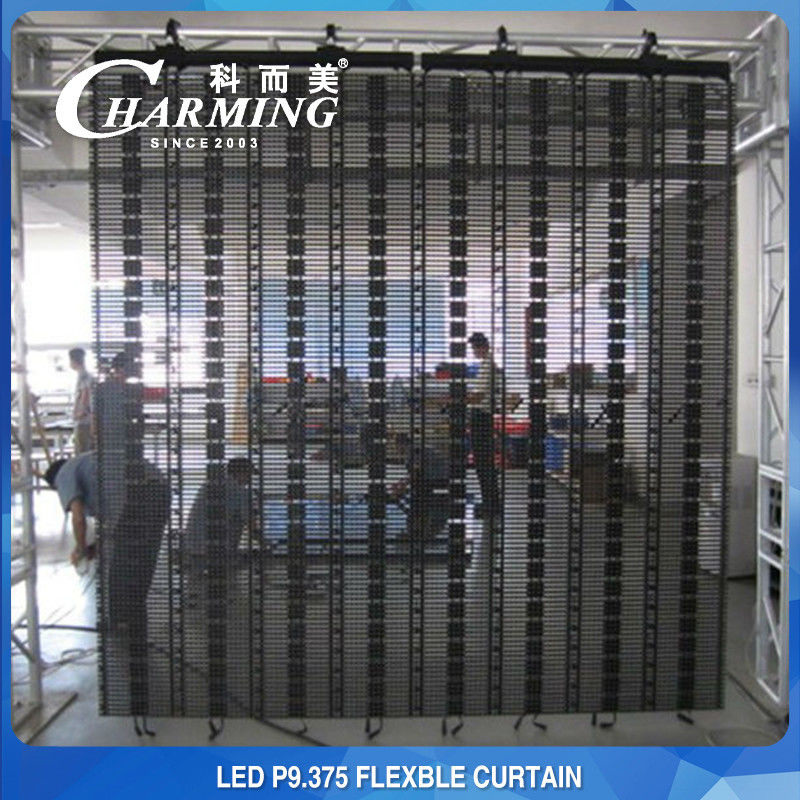

Installation Details
1.Splicing the box into the required size and shape, aligning the hole with the quick lock to fix the box.
2.Distinguish the power cable and the signal cable, and insert the power cable and the signal cable into the corresponding places of the box.
3.Connect the main signal cable and the main power cable to the computer and the controller, and use it successfully after debugging the screen.
Screen Usage

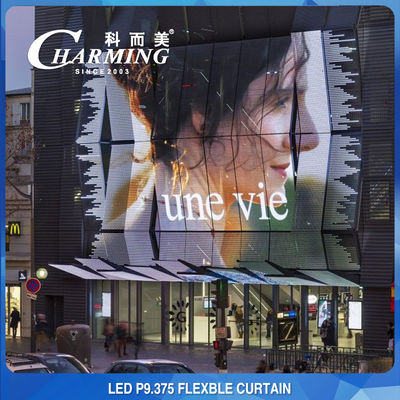

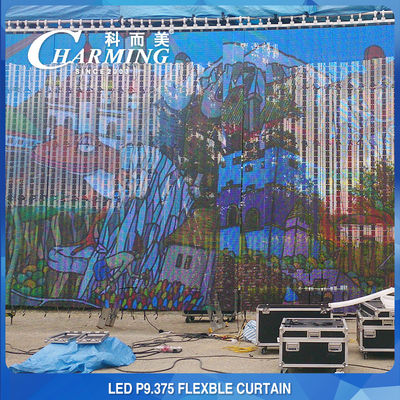

Curtain screen is suitable for large indoor performance stage rental, or outdoor large advertising screen, outdoor large performance. Adjustable screens allow for greater variety in screen shapes and uses.
Package Details
We have carton case, wooden case, flight case to choose from.Different products will be configured with different packaging, in order to better protect the screen.
Production process
Our brand has a history of 19 years, a complete production system and production line. With its own factory, it can realize mechanical automation production and reduce manual errors. Truly achieve high quality and low price, and provide customers with the best products at the lowest price.
Shipping Details
Provide multiple modes of transportation such as sea, land, air and so on. We have a long-term cooperative international logistics company, and our products can be sold all over the world. So far our products have been sold to more than 150 countries and regions around the world.
