• Waterproof IP65 Exterior Video Wall , P4 P5 P8 LED Outdoor Advertising Board
  • Waterproof IP65 Exterior Video Wall , P4 P5 P8 LED Outdoor Advertising Board
  • Waterproof IP65 Exterior Video Wall , P4 P5 P8 LED Outdoor Advertising Board

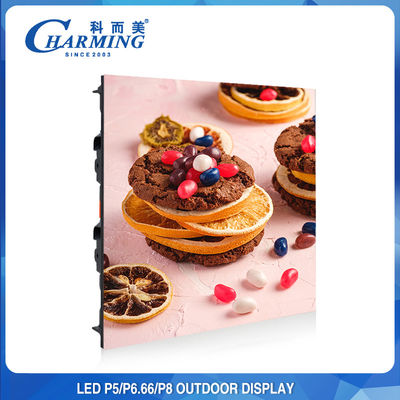

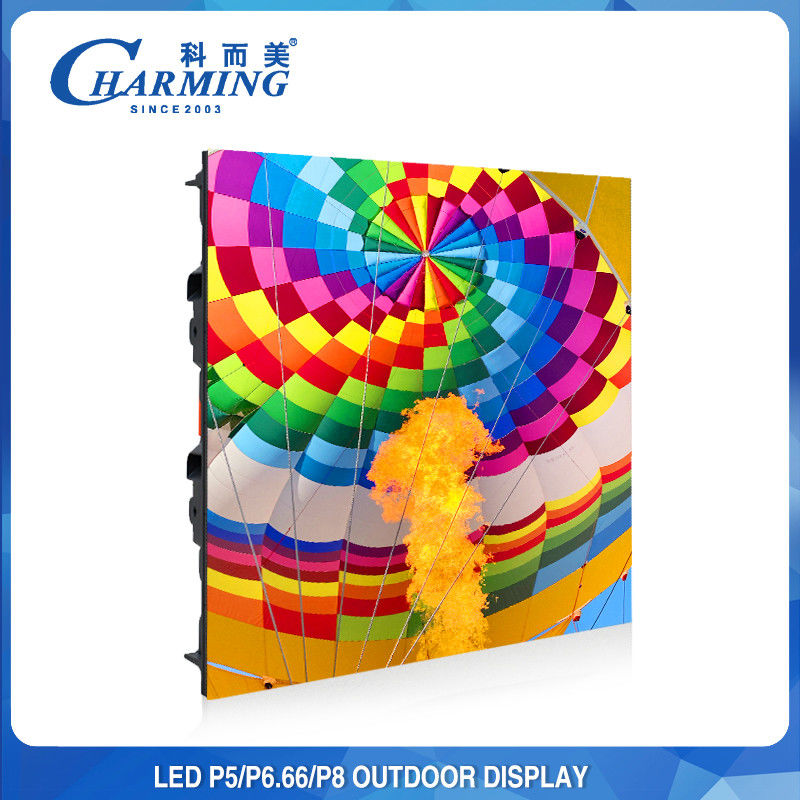

Waterproof IP65 Exterior Video Wall , P4 P5 P8 LED Outdoor Advertising Board

Waterproof IP65 Exterior Video Wall , P4 P5 P8 LED Outdoor Advertising Board

Product Details:

Place of Origin: China
Brand Name: Charming
Certification: CE, ROHS, LVD, EMC, CB, BIS, UL
Model Number: P5

Payment & Shipping Terms:

Minimum Order Quantity: 2 PCS
Price: Negotiable
Packaging Details: Carton Case, Wooden Case, Flight Case
Delivery Time: 10 Working Days after Payment
Payment Terms: L/C, T/T, Western Union, Paypal, Cash
Supply Ability: 1000 PCS per week
Get Best Price Contact Now

Detail Information

Product: P4, P5, P8 Outdoor Led Video Wall Pixel Pitch: P4-8mm
Refresh Rate: 1920HZ-3840HZ IP Rate: IP65
Resolution: 192x192 Panle Size: 960x960mm
Brightness: ≥6000CD/M² Weight: 38.5kg
High Light:

Waterproof Exterior Video Wall

,

IP65 Exterior Video Wall

,

P8 LED Outdoor Advertising Board

Product Description

Waterproof High Brightness P4, P5, P8 Outdoor Led Video Wall Display





Product Description



1. IP65 waterproof design for whole cabient

2. 28.8kg, ultralight, 30% light weight than iron cabinet

3. Cable hidden design, protect cables

4. 3 layer PCB board, good quality

5. Fast heating dissipation design



Waterproof IP65 Exterior Video Wall , P4 P5 P8 LED Outdoor Advertising Board 0

Technical Specifications



Type Number

M4

M5

M8

Pixel Pitch

4.0mm

5.0mm

8.0mm

Pixel Density

62500 Dot/㎡

40000 Dot/㎡

15625 Dot/

Scan Type

1/10 Scan

1/8 Scan

1/5 Scan

Brightness
≥5000CD/㎡
≥6000CD/㎡
≥5500CD/㎡
Best Viewing Distance
≥4M
≥5M
≥8M
Cabinet Resolution 240x240 192x192 120x120

Refresh Rate(Hz)

3840Hz / 1920Hz

Cabinet Size 960x960mm

Module Size

320x160mm

Cabinet Max Power

1200W

Viewing Angle

130°

IP Rate

IP65

Cabinet Material

Magnesium/Aluminum Alloy

Maintenance

Back Service

Working Temperature

-30~60℃

Working Humidity

10%~90%RH

Life Span

≥50000 Hours

Working Voltage

AC110V/220V, 50/60HZ
Weight 38.8kg



Detail Showing

Waterproof IP65 Exterior Video Wall , P4 P5 P8 LED Outdoor Advertising Board 1Waterproof IP65 Exterior Video Wall , P4 P5 P8 LED Outdoor Advertising Board 2

Front/Back Access is available
Modules, power supplies, and receiving cards can be maintained and used in various environments.

Waterproof IP65 Exterior Video Wall , P4 P5 P8 LED Outdoor Advertising Board 3

APPLICATION WITH STAGE, EVENT, CONCERT, EXHIBITION, CHURCH, RALLIES, AWARD SHOWS...

Waterproof IP65 Exterior Video Wall , P4 P5 P8 LED Outdoor Advertising Board 4
