SMD5050 DC12V LED Mesh Screen Outdoor Multi Scene 440x5005MM
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P55 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 8 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500 PCS per week |
|
Detail Information |
|||
| Product: | P55 Outdoor Led Mesh Screen | Product Pixel Pitch: | 55MM |
|---|---|---|---|
| Specifications Per Column: | 440*5005 MM | Led Specifications: | SMD5050 |
| Input Voltage: | DC12V | Average Power: | 50W |
| Brightness: | ≥750CD/M² | IP Rate: | IP67 |
| High Light: | SMD5050 LED Mesh Screen,Multi Scene LED Mesh Screen,5005MM LED Mesh Screen Outdoor |
||
Product Description
High Brightness P55 Outdoor Led Mesh Screen Fixed Led Video Wall
Product Specifications
1. Easy To Install and Maintain
The connection between strings is series connection , the installation is easy and covenient . Enen if one pixel broken , it will not affect the follow pixels's signal. Receive , can lower the products broken rate as possible.
2. Waterproof Male/Female Butt Plug
Assure of great connection , convenitly install and easy usage. Production level IP66 , life span long.

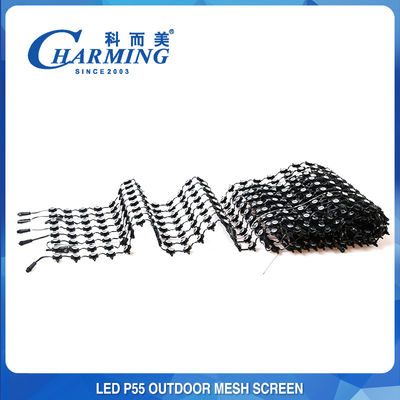

3. Flexiblity
Easy to flex , roll , hang and fold , can combine freely to and shape. Can play video , animation , full color effects.

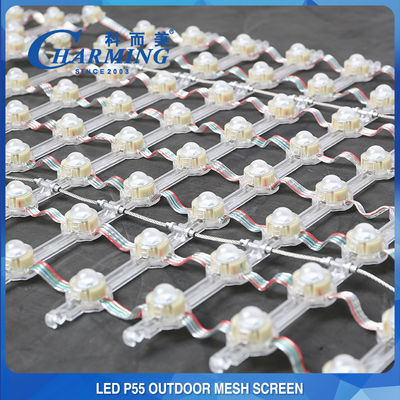

4. High Brightness
The product use SMD5050 led lamp, light source balancing greatly , low heat assume. High quality PC mask : curved PC mask, high light transparency, wide view angle.
Product Specifications
|
Type Number |
G055(Transparent/Black) |
|---|---|
|
Dimension(MM) |
440x5005MM |
|
Pixel Pitch(MM) |
55MM |
|
LED standard |
SMD5050 |
|
Weight |
5.7KG |
|
Gary Level |
8bit |
|
Input Voltage |
DC12V |
|
Grey level |
16 bit |
|
Brightness(CD/M²) |
≥750CD/M² |
|
Like A Few Points |
8x91Column |
|
IP Rate |
IP67 |
|
Best viewing distance(M) |
≥55MM |
|
Max power |
150W |
|
Average Power |
50W |
|
View angle |
120° |
|
Life Span |
≥100000 Hours |
|
Installation Method |
Hoisting |
Product Acessories
Product accessories will be shipped according to the number of products confirmed. The module accessories are as follows: power control case, sending card, controller, power cord, signal line.
Installation Detail
The products' size are small and weight are light , with the assist of soft iron wire , can achieve a lot of different installation.
Connect the wires between each screen, then assemble the screen into the desired size and shape, and connect the screen to the control box and sending card to complete the installation.

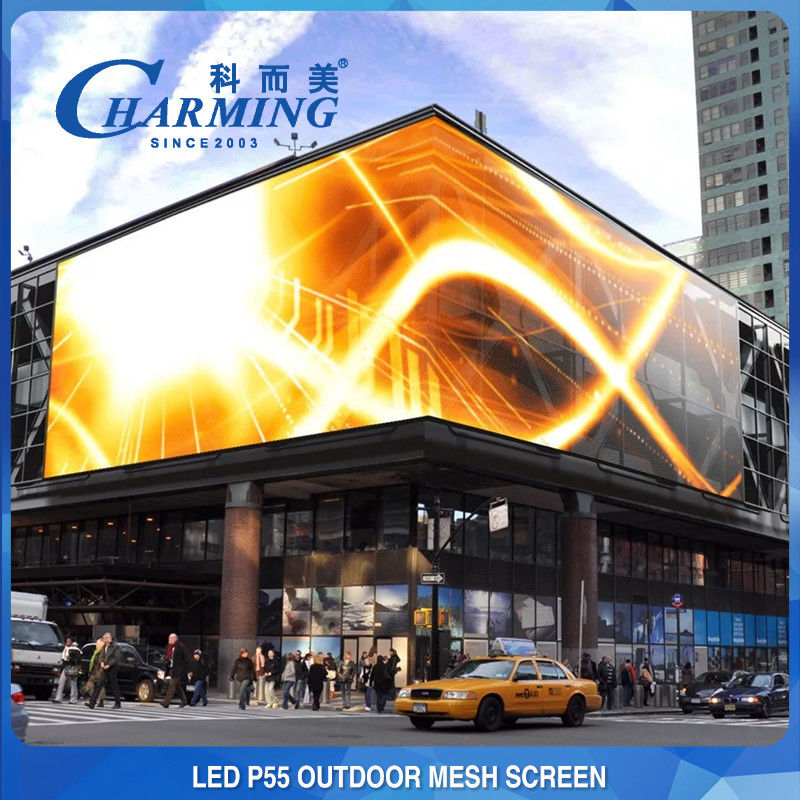

Case Show
The products are suitable for various outdoor large performance screen, or outdoor large advertising screen display.Outdoor or indoor fixed installation, outdoor high-rise building advertising screen.
