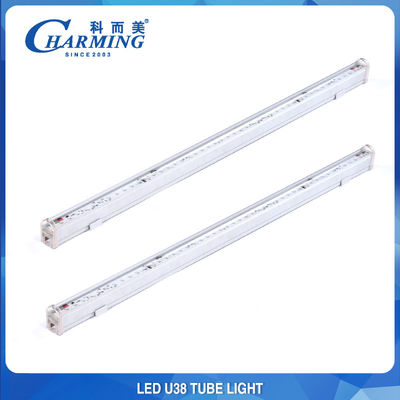

Landscape RGB Pixel LED Tube Light Seamless Multipurpose Durable
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | U38 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Key Word: | Led Outdoor Tube Light | Application: | Landscape |
|---|---|---|---|
| Color: | Full Color RGB | IP Rate: | IP65 |
| Material: | Aluminum Alloy + PC | Size: | 1000mm X 34mm X 54mm |
| Brightness: | ≥1000CD/M² | Weight: | 0.9kg |
| High Light: | Landscape Pixel LED Tube Light,Seamless Pixel LED Tube Light,Multipurpose Pixel Tube LED |
||
Product Description

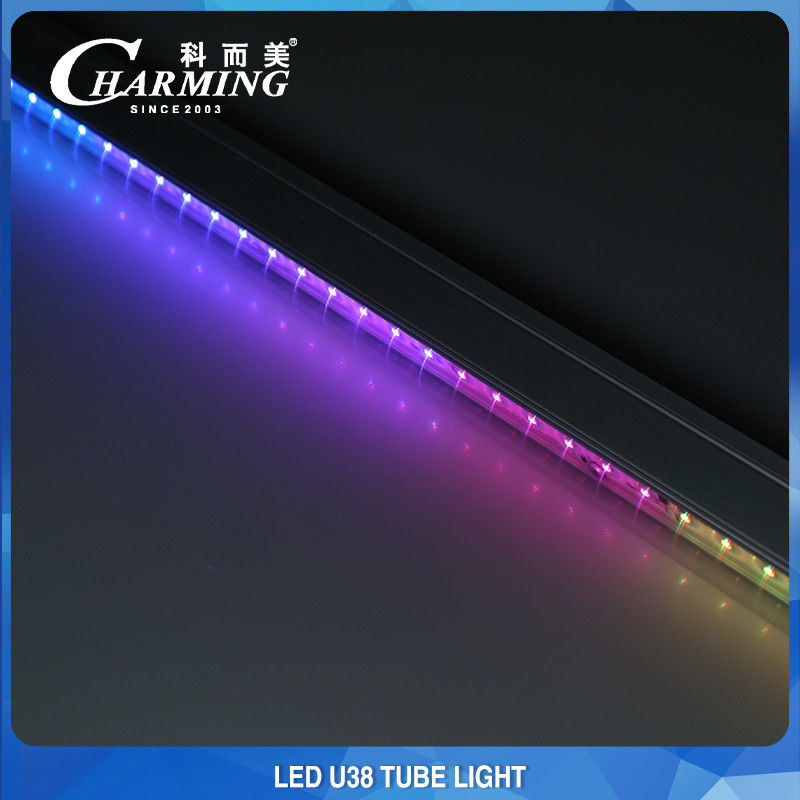

High Brightness Outdoor Facade Waterproof Led Outdoor Tube Light
Product Description
1. Aluminum alloy light body
Corrosion resistant and wear-resisting, gear cooling system
2. Plug connector
Fast and waterproof plug, easy connection and installation
3. Transparent cover
Anti UV-PC cover, keep clear and transparent in 3 years
4. Cable Design
Integrated invisible cabling design, simple and elegant appearance design
5. IP Rate
6. Seamless Design
Technical Specifications
|
Type number |
COL.L.006.0016 |
COL.L.006.0014 |
|---|---|---|
|
LED quantity |
24 |
48 |
|
Max Power(W) |
5.5W |
11.5W |
|
Input voltage |
DC 24V |
DC 24V |
|
Dimension(mm) |
500*38*62 |
1000*38*62 |
|
LED dimension |
SMD 5050 |
SMD 5050 |
|
Pixel |
4 |
8 |
|
Net weight |
0.4kg/pcs |
0.9kg/pcs |
|
Color type |
Full color RGB |
|
|
Connector |
SPI |
|
|
Connect mode |
Standard signal cord and power cord |
|
|
Controlling system |
LED Flash computer controller/SD card control system |
|
|
Material |
Aluminum allloy + PC |
|
|
Isolating grade |
CLASSE Ⅱ |
|
|
Working Temperature |
-20~55℃ |
|
|
Protection level |
IP 65 |
|
|
Life Span |
≥50000 Hours |
|
Detail Showing

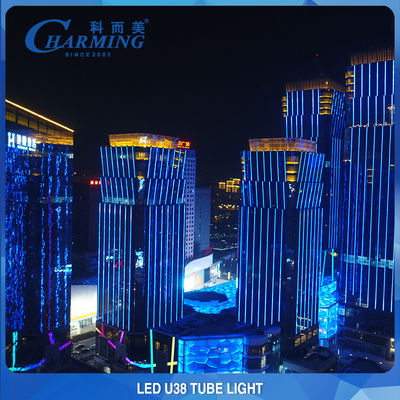

APPLICATION WITH ALL KINDS OF BUILDING FACADE.
