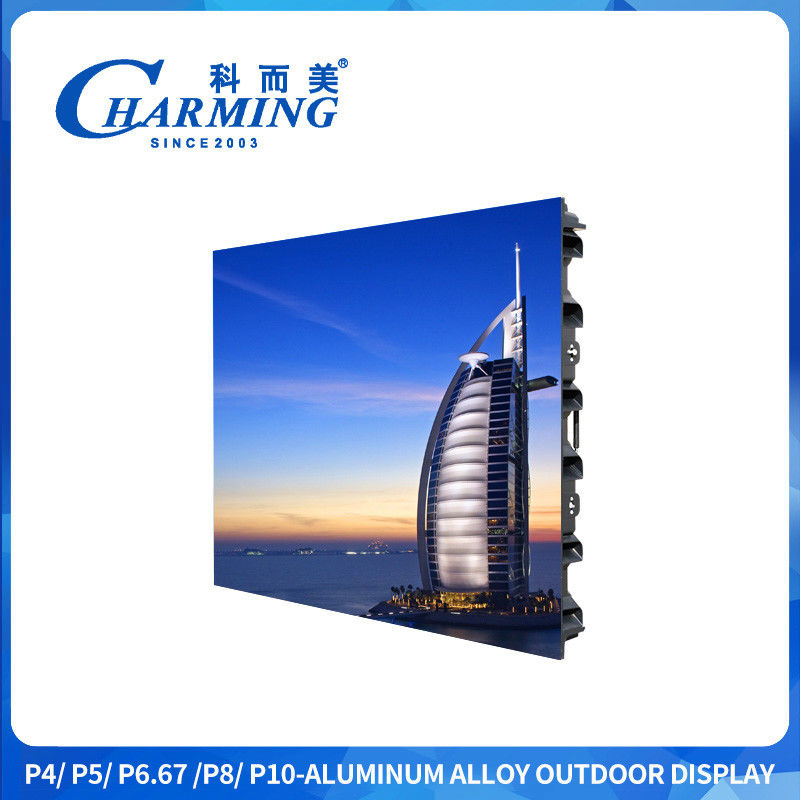

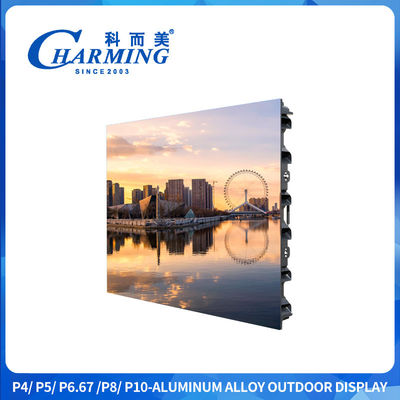

Fixed Led Wall 5500 Nits IP65 Outdoor LED Display With Crystal-Clear Resolution For Stadiums & Arenas
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P4/5 |
| Document: | P3-P4-P5-P6.66-P8-P10 outdo...or.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 30 Working Days after Payment |
| Payment Terms: | L/C,T/T,Western Union,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| IP Grade: | IP65 | Screen Resolution: | 192*192 |
|---|---|---|---|
| Pixel Density: | 40000 | Screen Brightness（CD/㎡ ）: | ≥5500 |
| Grey Scale（bits）: | 14-16 | Refresh Frequency（Hz）: | 1920/7680 |
| Cabinet Weight（KG）: | 26.6 | LED Standard: | SMD1921 |
| Cabinet Max. Power(W): | 900 | Best Viewing Distance（M）: | ≥4 |
| Miaintenance Method: | Back-mantenimiento | Control Distance: | HSYV：100m；Fibra Monomodo：10 Km |
| Highlight: | Fixed LED wall 5500 nits outdoor,IP65 outdoor LED display stadium,Crystal-clear resolution LED video wall |
||
Product Description
Designed specifically for sporting events, concerts, and outdoor entertainment venues, this high-resolution LED video wall delivers exceptional visual performance in demanding outdoor environments.
| Specification | P4 Model | P5 Model |
|---|---|---|
| Pixel Density (Dot/㎡) | 62,500 | 40,000 |
| Max Power (W) | 1,200 | 900 |
| Brightness (CD/m) | ≥5,500 | ≥5,500 |
| LED Standard | SMD1921 | SMD1921 |
| Protection Level | IP65 | IP65 |
| Screen Resolution | 240*240 | 190*192 |
| Refresh Rate (Hz) | 1920/7680 | 1920/7680 |
| Pixel Pitch (MM) | 4MM | 5MM |
| Cabinet Weight (KG) | 28 | 26 |
| Grey Level | 14-16 Bit | 14-16 Bit |
| Life Span | ≥100,000 Hours | ≥100,000 Hours |
| Working Voltage | AC 220V/(110V)±15% | AC 220V/(110V)±15% |
| Cabinet Material | Magnesium Alloy | Magnesium Alloy |
Since 2003, Charming Co., Ltd. has revolutionized entertainment lighting by introducing the world's first purpose-built LED display for stage applications. Today, we're proud to be China's favorite entertainment LED brand, trusted by professionals worldwide.
- Innovation: Nearly 100 patents and counting
- Quality: ISO-certified manufacturing in our 10,000 sqm smart factory
- Global Reach: 23 years of excellence across 170+ countries and areas
True to our "Charming Achieve Beauty" vision, we continue to push boundaries in LED technology while maintaining our commitment to outstanding customer service.
-
Price?
Hit us up – we reply within 24 hours. In a hurry? Let us know and we'll fast-track it. -
Samples?
Absolutely! Tell us what you need and we'll get it done. -
Shipping?
Depends on quantity and season. Small orders: 7–15 days. Larger: ~30 days. -
Payment?
Flexible – T/T, PayPal, Ali Trade Assurance, etc. Whatever suits you.
We provide comprehensive operation manuals, software, test reports, and technical documentation.
We can also provide all necessary certifications including CE, UL, and other international standards.
- 2-Year Warranty – Covers everything. Factory defect? We fix or replace it, free.
- Lifetime Maintenance – No labor fees, ever. Just pay for parts after warranty.
- Free Factory Training – Get hands-on with operation and upkeep.
- Full Documentation – Manuals, software, test reports, CAD drawings – all included.
- Expert Support – Our team's here whenever you need advice.
