CH Series Rental & Fixed Outdoor Display – 7.9kg Lightweight Cabinet | Front/Rear Maintenance | IP65 Waterproof
Product Details:
| Place of Origin: | China |
| Brand Name: | Charning |
| Certification: | CE,CCC,CB,ROHS,SASO,BIS |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Fight Case |
| Delivery Time: | 30 Working Days after Payment |
| Payment Terms: | L/C,T/T,cash,Western Union,Paypal |
| Supply Ability: | 900 PCS per week |
|
Detail Information |
|||
| Type Number: | P3.91 | Dimension: | 500*500*84mm |
|---|---|---|---|
| Brightness: | ≥3500 CD/㎡ | Scan Mode: | 1/16 Scan |
| Max Power: | 200W | Pixel Density: | 65536 Dot/㎡ |
| Highlight: | CH Series LED video wall display,lightweight outdoor LED display cabinet,IP65 waterproof LED display panel |
||
Product Description

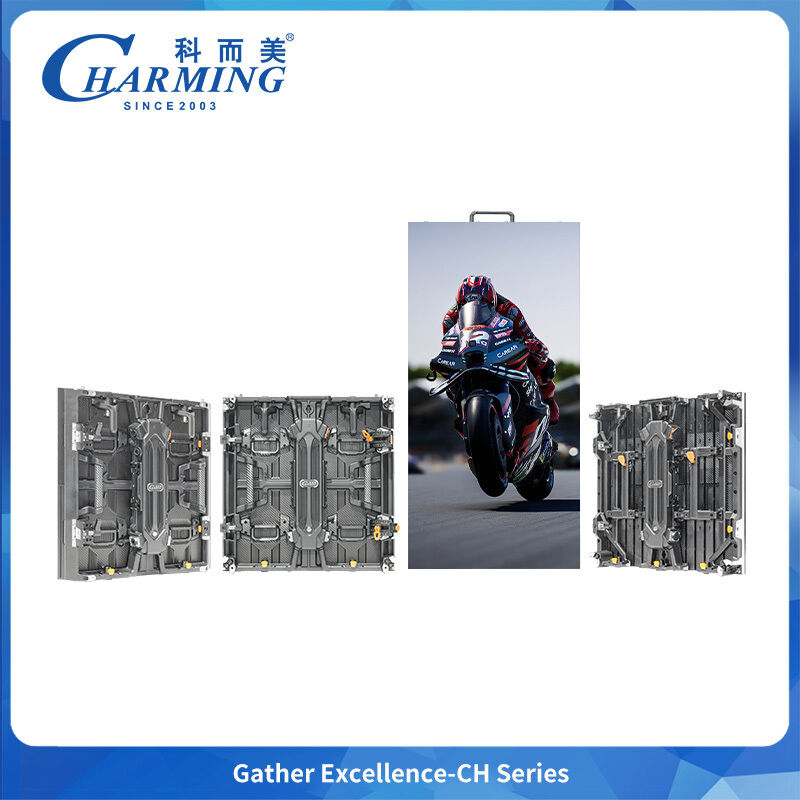

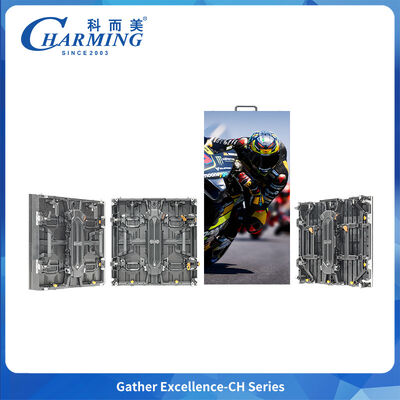

CH Series Rental & Fixed Outdoor Display – 7.9kg Lightweight Cabinet | Front/Rear Maintenance | IP65 Waterproof
Designed for fast turnarounds, the CH Series enables tool-free front and rear maintenance with one-click degaussing. The press-to-eject control latch and special lifting handle allow single-operator cabinet removal during hoisting. Retractable locating pins enable full-cabinet replacement without disturbing adjacent units. Optional semi-automatic corner guards reduce teardown steps, making it ideal for high-frequency rental and event applications. performance runs.
Product Show:
PRODUCTS DSTAILS and APPLICATION
Product Feature:
. One-Click Degaussing & Tool-Free Maintenance
Front and rear maintenance with spring-loaded captive screws and magnetic module attachment allows quick degaussing and removal, reducing downtime and labor costs.
. Full-Range Interlocking & Custom Shapes
Regular, curved, right-angle, and flexible cabinets can interlock seamlessly. Supports U-shape, circular, offset, and 45° beveled assemblies for limitless design possibilities.
. Rugged & Reliable Outdoor Performance
IP65-rated die-cast aluminum cabinets with ribbed heat dissipation, wide working temperature (-20~60℃), and high brightness (≥3500 CD/m²) ensure stable operation in harsh environments.
Company Introduce:
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 23 years.
