Outdoor LED Display P4– High brightness & wide color range IP65 waterproof rating Reliable Performance for Demanding Environments
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 30 Working Days after Payment |
| Payment Terms: | L/C,T/T,Western Union,Paypal,Cash |
| Supply Ability: | 500 PCS per week |
|
Detail Information |
|||
| Highlight: | Outdoor LED Display P4 high brightness,IP65 waterproof LED video wall,Outdoor LED display wide color range |
||
|---|---|---|---|
Product Description

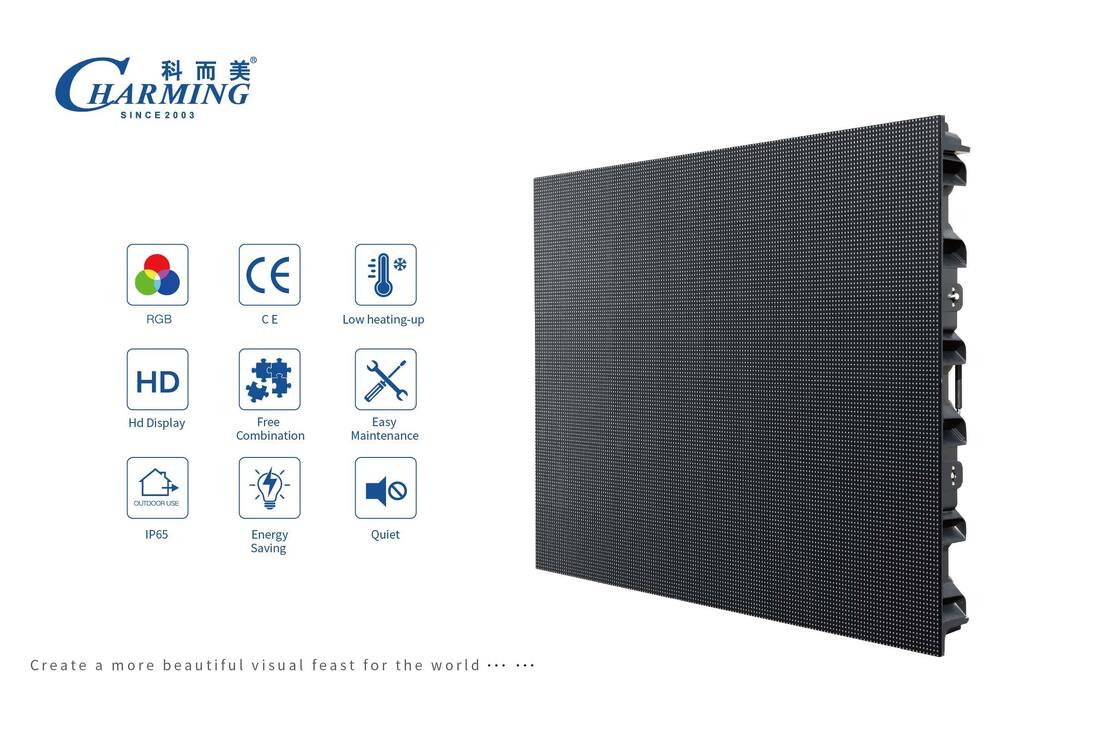

Outdoor LED Display – High brightness & wide color range Reliable Performance for Demanding Environments
Product Details:

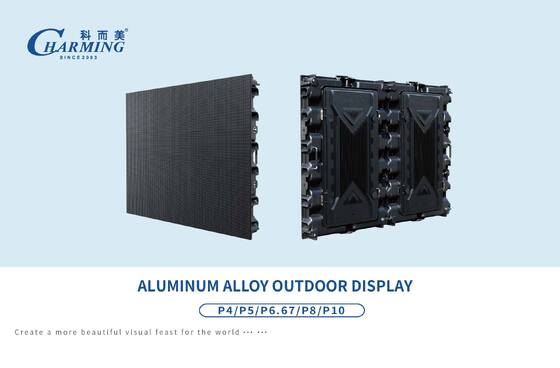

Self‑cooling fin design
IP65 waterproof rating
Zinc alloy quick locks
High brightness & wide color range
Product Parametes
| Cabinet Size | 960*960mm |
| Pixel Pitch | 4mm |
| Pixel Density | 62500 Dot/m2 |
| LED Size | SMD1921 |
| Scan Type | 1/10 Scan |
| Grey Scale | 14-16bit |
| Refresh Frequency | 1920/7680Hz |
| Screen Brightness | ≥5500 CD/㎡ |
| Best Viewing Distance | ≥4M |
| Screen Resolution | 240*240 |
| Module Size | 320*160mm |
| View ngle | 120° |
| Cabinet MaxPower | 900W |
| Cabinet Weight | 26.6KG |
| IPGrade | IP65 |
| Screen Working emperature | -20~+60℃ |
| Operating humidity | 10%~90%RH |
Installation Details
1.Splicing the box into the required size and shape, aligning the hole with the quick lock to fix the box.
2.Distinguish the power cable and the signal cable, and insert the power cable and the signal cable into the corresponding places of the box.
3.Connect the main signal cable and the main power cable to the computer and the controller, and use it successfully after debugging the screen.
Package Details
We have carton case, wooden case, flight case to choose from.Different products will be configured with different packaging, in order
to better protect the screen.
