3D Naked Eye LED Video Wall Sign Mobile Advertising Car LED Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Product Name: | P5 Outdoor Display | Pixel Pitch: | 5mm/8mm |
|---|---|---|---|
| Size: | 960x960mm/640*960mm | Resolution: | 160x120 Pixel |
| Cabinet Weight: | 32KG | Refresh Rate: | 1920hz-3840hz |
| Module Size: | 320x160mm Size | Brightness: | ≥5500CD/M² |
| IP Rate: | IP65 Level | Life Span: | ≥5years |
| High Light: | 3D Naked LED Video Wall Sign,Mobile Advertising LED Video Wall Sign |
||
Product Description
3D Naked eye big screen P5 P8 LED Video Wall Sign Mobile Advertising Car Led Screen
Product Advantages
Product Details
1. Seamless Splicing
Neat module edges can keep the whole screen flat and good-looking when spliced together.
2. HD Display
High quality lamp beads can display high-definition images, so that the audience can have a better viewing experience.
3. Easy Maintenance
Light weight and thin body can be more easy to install.
4. Low Power
The module has low energy consumption, which can save power and protect the environment.
5. High Refresh 3840HZ
High resolution can show a smoother and clearer picture.

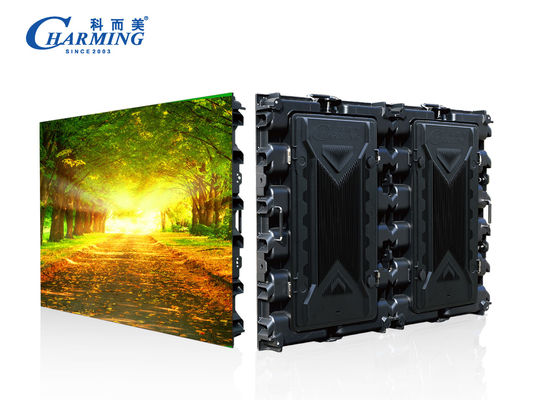

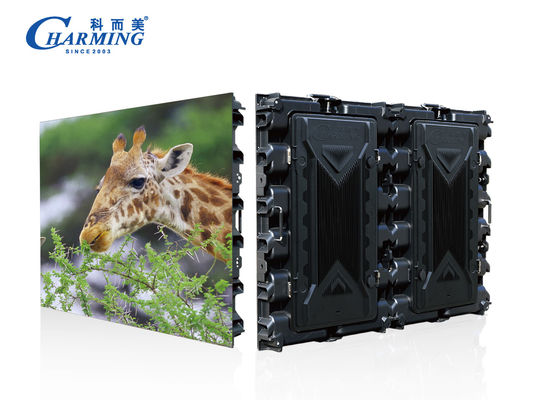

Cabinet Detail
Die-casting Aluminum cabinet. Strong regidity, no deformation, more accurate splicing , ergonomic structural design easy installation by one person.
Product Parameters
|
Type Number |
P8 |
|---|---|
|
Dimension(MM) |
1280x960x128MM |
|
Max Power(W) |
1200WM² |
|
Cabinet Weight(KG) |
28KG |
|
Refresh Rate(Hz) |
3840Hz / 1920Hz |
|
Pixel Pitch(MM) |
8MM |
|
Led Standard |
SMD3535 |
|
Pixel Density(Dot/M²) |
15625 Dot/M² |
|
Brightness(CD/M²) |
≥5500CD/M² |
|
Viewing Angle |
130° |
|
IP Rate |
IP65 |
|
Cabinet Material |
Aluminum Alloy |
|
Maintenance |
Back Service |
|
Grey Level |
14-16 bit |
|
Working Temperature |
20~60℃ |
|
Working Humidity |
10%~90%RH |
|
Life Span |
≥50000 Hours |
|
Working Voltage |
AC110V/220V, 50/60Hz |
Installation Details
1.Splicing the box into the required size and shape, aligning the hole with the quick lock to fix the box.
2.Distinguish the power cable and the signal cable, and insert the power cable and the signal cable into the corresponding places of the box.
3.Connect the main signal cable and the main power cable to the computer and the controller, and use it successfully after debugging the screen.
Application
It's business covers indoor and outdoor led display, transparent led screen, LED components, LED multimedia advertising screen, stadium display, highway and transportation changeable message sign, rental display, indoor and outdoor led lighting etc.
Shipping Details
Provide multiple modes of transportation such as sea, land, air and so on. We have a long-term cooperative international logistics company, and our products can be sold all over the world. So far our products have been sold to more than 150 countries and regions around the world.
