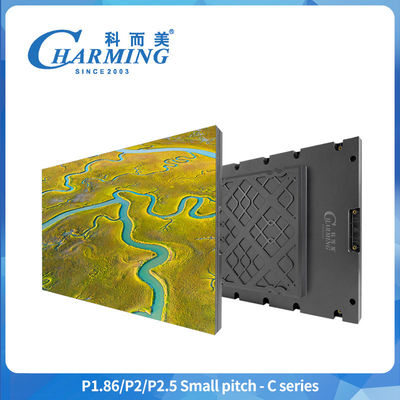

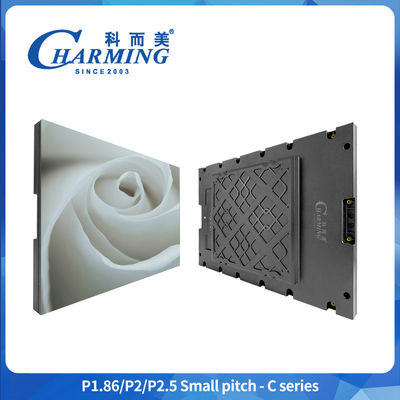

Fine Pitch High Refresh LED Display Screen P1.25 P2 P2.5 For Shopping Hall
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | P1.86-2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | Fine Pixel Pitch Screen | Application: | For Shopping Mall |
|---|---|---|---|
| Protection Rate: | IP40 | Module Size: | 320*160mm |
| Refresh Frequency: | 4k | Weight: | 2.42kg |
| Maintenance Method: | Front Maintenance | Cabinet Size: | 320*480*52mm |
| Brightness: | >1000nit | Control System: | Nova Star |
| High Light: | High Refresh LED Display Screen,P2 LED Display Screen |
||
Product Description
Indoor Fine Pitch High Refresh LED Display Screen P1.25 P2 P2.5 For Shopping Hall
Installation service:
The seller should provide on the spot installation instruction service for the
buyer, including:
A, To check whether the bracket and frame are in conformity with the technical
requirements of the structure scheme the seller provided
B, To instruct the buyer’s technicians to install the LED module cases and
connection among those cases
C, To experiment and adjust the whole panel, examine and repair the
defective devices, guarantee panel in secure operation.
D, To train the buyer’s technicians.
For spot installation and train in foreign country, the service is 100 usd/day,
and the buyer must pay our technician’s living and traffic fee during the installation
period.
Technical Specification
| Type Number | S1.86 | S2.0 | S2.5 |
| Cabinet Siz | 320*480*52mm | 320*480*52mm | 320*480*52mm |
| Pixel Pitch | 1.86MM | 2.0MM | 2.5MM |
| Screen Brightness | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm |
| Module Size | 320*160mm | 320*160mm | 320*160mm |
| Screen Resolution | 172*258 | 160*240 | 128*190 |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Cabinet Max Power | 80W | 80W | 80W |
| Refresh Rate | 3840hz | ||
| View Angle | 140° | ||
| Weight | 2.42KG | ||
| Material | plastic | ||
| Maintenance | Front Maintenance | ||
| Grey Level | 16 Bit | ||
| Temperature | -20°-60° | ||
| Life Span | ≥500000 | ||
| Voltage | AC110V/220V, 50HZ/60HZ | ||
Details Showing

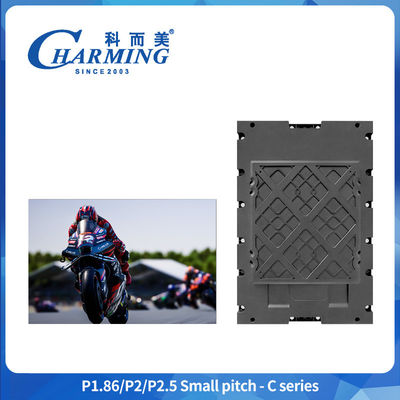

The standard 16:9 size cabinet supports front/rear maintenance, back wireless design and seam adjustment.
It has realistic picture, high refresh rate, smaller area and larger resolution display.
Application
government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, clubs, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.
In short, many places need led screens for various purposes, we will do our best to meet trends and needs.
