4K P5 And P8 Outdoor LED Screen Wall Display Self - Heating HD
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,LVD, EMC, BIS, UL,ROHS |
| Model Number: | P5P8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Key Word: | P5, P8 Outdoor Led Display | Pixel: | 8mm, 5mm |
|---|---|---|---|
| Cabinet Max Power: | 1200W | Viewing Angle: | 130 ° |
| Refresh Rate: | 1920HZ-3840HZ | IP Rate: | IP65 |
| Panle Size: | 1280x960mm, 960x960mm, 960x640mm | Application: | ≥6000CD/M² |
| Weight: | 38.5kg | Color: | Full Color |
| High Light: | P8 Outdoor LED Screen Wall,Self Heating HD 4K LED Screen Wall |
||
Product Description
P5 P8 Outdoor Video Wall Led Display Big Billboard Waterproof
P5 And P8 Outdoor LED 4K Screen Wall Display Self-Heating HD
Product Description
1. Fine design can be used outdoor application, good heat dissipation, no need air conditioners.
2. Seamless surface, no gaps, more beautiful display effect.

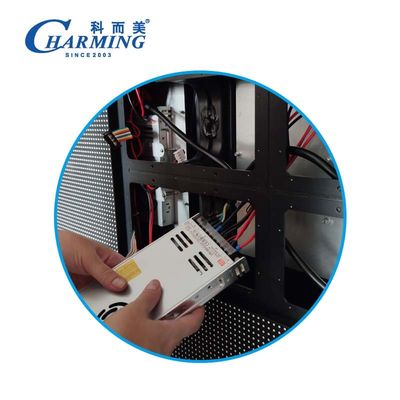

3. Can support front maintenance customazation.
4. High quality material, wear resistance and impact resistance.
5. Strong rigidity, high quality.
6. Wider color range, color reproduction perfectly, more vivid display pictures.
Technical Specifications
|
Type Number |
M4 |
M5 |
M8 |
|---|---|---|---|
|
Pixel Pitch |
4.0mm
|
5.0mm |
8.0mm |
|
Pixel Density |
62500 Dot/㎡
|
40000 Dot/㎡ |
15625 Dot/㎡
|
|
Scan Type |
1/10 Scan
|
1/8 Scan |
1/5 Scan |
|
Brightness
|
≥5000CD/㎡
|
≥6000CD/㎡
|
≥5500CD/㎡
|
|
Best Viewing Distance
|
≥4M
|
≥5M
|
≥8M
|
| Cabinet Resolution | 320x240 | 256x192 | 160x120 |
|
Refresh Rate(Hz) |
3840Hz / 1920Hz |
||
|
Module Size |
320x160mm |
||
|
Cabinet Max Power |
1200W |
||
|
Viewing Angle |
130° |
||
|
IP Rate |
IP65 |
||
|
Cabinet Material |
Magnesium/Aluminum Alloy |
||
|
Maintenance |
Back Service |
||
|
Working Temperature |
-30~60℃ |
||
|
Working Humidity |
10%~90%RH |
||
|
Life Span |
≥50000 Hours |
||
|
Working Voltage |
AC110V/220V, 50/60HZ | ||
Detail Showing
APPLICATION WITH STAGE, EVENT, CONCERT, EXHIBITION, CHURCH, RALLIES, AWARD SHOWS...
Our Advantages
1. 20 years led manufacturer
Our company was established in 2003, so we have almost 20 years history to produce high quality products.
2. Professional led leader
Going through 20 years,we have own factory and we have built whole-set management system, R&D department, SMT department, 24 hours online technician department.Therefore, we are enough to have professional technology.
3. Patient Service Team
We have a profeesional team to solve the tech problem, answer what you are confused and meet your needs.
4. Import more than 150 countries
So far, we have imported more than 150 countries and got the support and trust from our customers.
