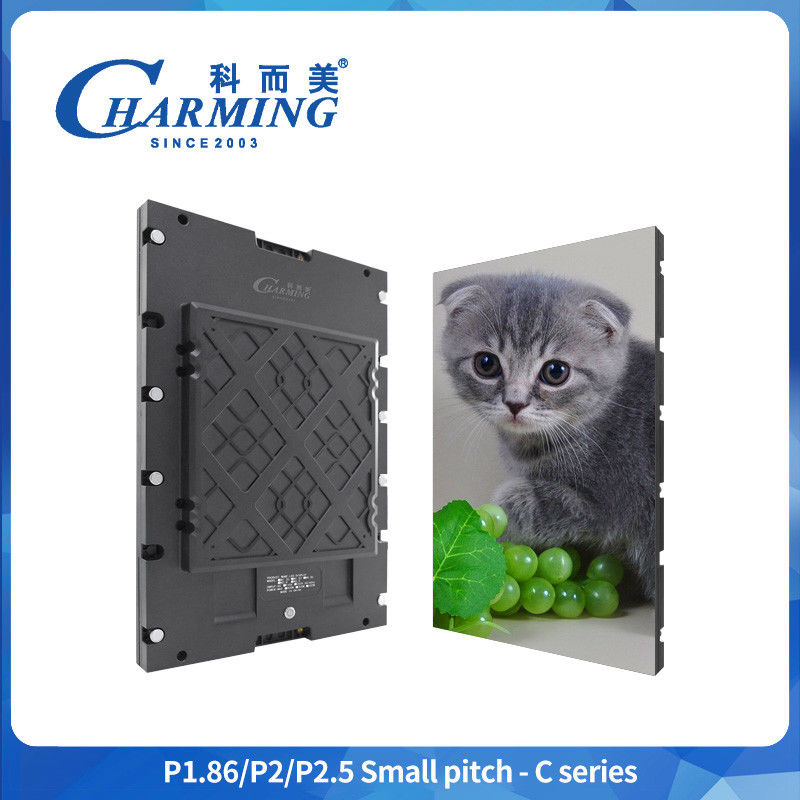

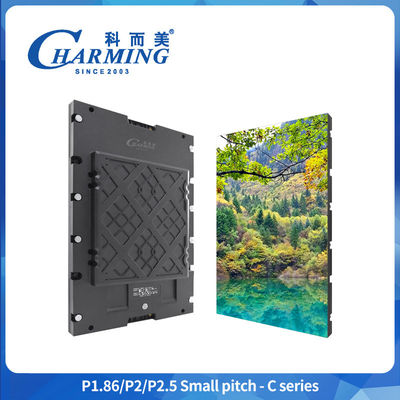

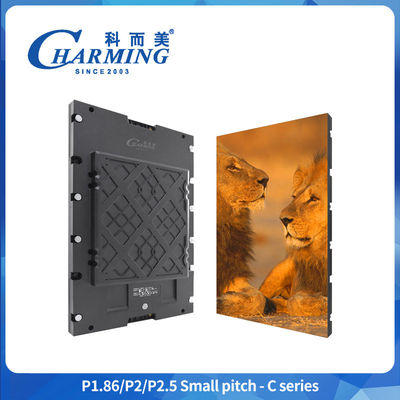

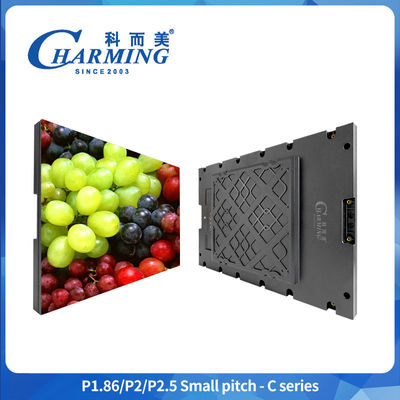

SMD 2020 LED Video Wall Screen Fine Pixel Pitch Indoor Ultra Brightness For Meeting Room
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Dimension(MM): | 320 X 480 X52 MM | MaxPower(w): | 80 W |
|---|---|---|---|
| Cabinet Weight(KG): | 2. 42 KG | Refresh Rate (Hz): | HD 3840Hz /1920 Hz |
| Pixel Pitch(MM): | 1.86 / 2 / 2.5 | LED Standard: | SMD 1515 / SMD 2020 |
| Brightness (CD/㎡）: | 600CD/ ㎡ | Viewing Angle: | 130 ° |
| Protection Level: | IP 40 | Life Span: | ≥ 50000 H |
| High Light: | SMD 2020 LED Video Wall Screen,Fine Pixel LED Video Wall Screen,Ultra Brightness LED Video Wall Screen |
||
Product Description
LED Video Screen Wall Fine Pixel Pitch Indoor Ultra Brightness Slim Design Meeting Room
Product introduction:
1) High Reliability, Long Durability;
2) Low Power Consumption, Energy Saving;
3) Long Lifespan,High Brightness;
4) Integrated and light weight displayment;
5) Quick installation and easy to maintainance;
Product Feature
1, Cabinet size:480*320mm;
2, Light weight and slim design;
3, 100% front maintenance service available;
4. Reliable quality LEDs and IC to reduce maintenance cost.
Product parameters
| Dimension(MM) | 320x480x52MM |
| Pixel Pitch(MM) | 1.86 / 2 / 2.5MM |
| LED Standard | SMD1515/SMD2020 |
| Scan Mode | 1/43Scan |
| Pixel Density(Dot/㎡) | 289050Dot/㎡ / 250000Dot/㎡ / 160000Dot/㎡ |
| Max.Power(w) | 80W |
| Cabinet Weight(KG) | 2.42KG |
| Refresh Rate (Hz) | 3840Hz |
| Brightness (CD/m²) | 800CD/㎡ 600CD/㎡ |
| ViewingAngle | 130° |
| Protection Level | IP40 |
| Cabinet Material | Diecast Aluminium |
| Maintenance Method | Front Maintenance |
| Grey Level | 16 Bit |
| WorkingTemperature | -20-70℃ |
| WorkingHumidity | 10%~65%RH |
| Life Span | 50000Hours |
| WorkingVoltage | AC 110V220V,50 60HZ |
Company profile
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led screen was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting LED.
It has obtained nearly 100 patents and obtained ISO9001, CCC,CE, CB,, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 SQM. We have provided quality products and services to customers in more than 150 countries and regions for 20 years.
1. How much is the freight ?
The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.
2. What is the warranty ?
1 years Warranty.
3. What is Price per square meter of screen ?
Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
4.Can I customize it ?
Yes. All the goods can be customized, we have a professional product development team, welcome to customize.
5. What is your payment term?
alibaba,T/T, Paypal, or other is ok .This is negotiable.
6.How to choose a best pixel pitch?
Answer: Choose the suitable pixel model according to the closest viewing distance, the smaller the value, the clearer!
7. Is it OK to print my logo on the products?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
8: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
