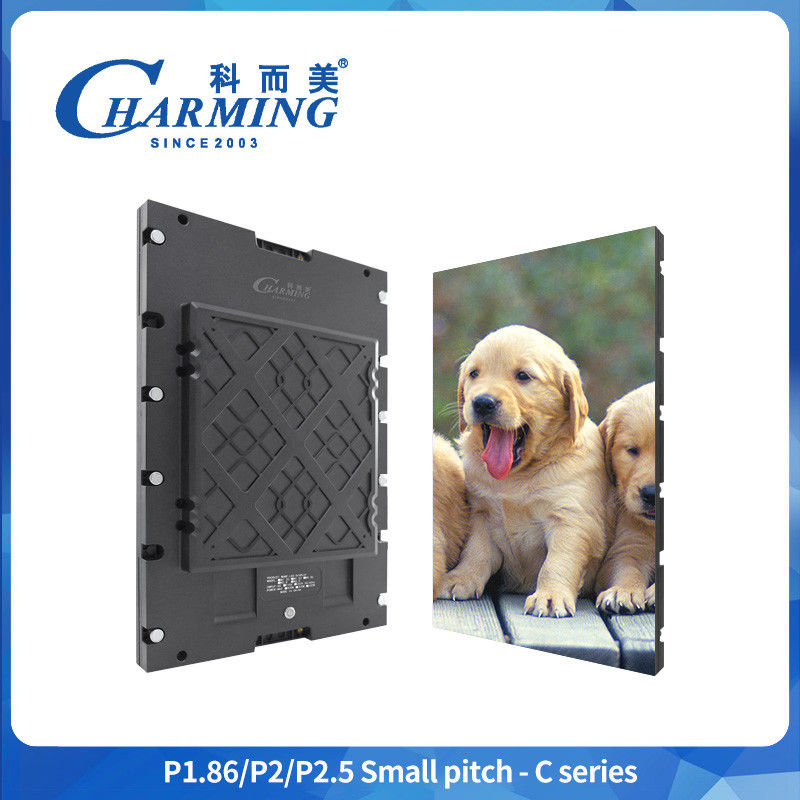

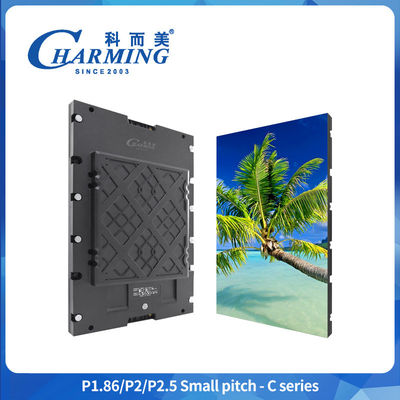

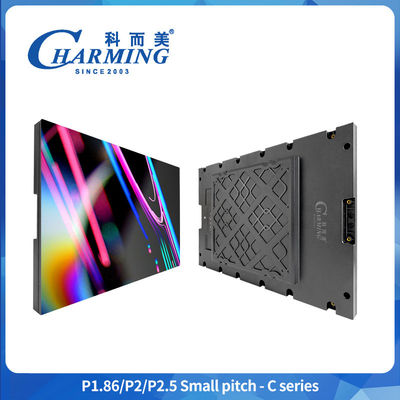

1000nits Full Color Fine Pitch LED Display In Government
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | P1.86-2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | Fine Pixel Pitch Screen | Application: | Goverment Project |
|---|---|---|---|
| Protection Rate: | IP40 | Module Size: | 320*160mm |
| Refresh Frequency: | 3840HZ | Weight: | 2.42kg |
| Maintenance Method: | Front Maintenance | Cabinet Size: | 320*480*52mm |
| Brightness: | >1000nit | ||
| High Light: | Full Color Fine Pitch Led Display,1000nits Fine Pitch Led Display |
||
Product Description
Indoor Screen 1000nits Full Color Fine Pitch Led Display Used In Government
Our Advantages
1. Utra light; 1 pcs only 2.42kg
2. Save installation cost and space; whole machine magnetic
suction installation
3. Reduce installations cables; cabinet only need power and signal cables
4. Utra thin, thickness only 52mm, after installation, the protruding
thickness of the box body is only 30.5mm
Technical Specification
| Type Number | S1.86 | S2.0 | S2.5 |
| Cabinet Siz | 320*480*52mm | 320*480*52mm | 320*480*52mm |
| Pixel Pitch | 1.86MM | 2.0MM | 2.5MM |
| Screen Brightness | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm |
| Module Size | 320*160mm | 320*160mm | 320*160mm |
| Screen Resolution | 172*258 | 160*240 | 128*190 |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Cabinet Max Power | 80W | 80W | 80W |
| Refresh Rate | 3840hz | ||
| View Angle | 140° | ||
| Weight | 2.42KG | ||
| Material | plastic | ||
| Maintenance | Front Maintenance | ||
| Grey Level | 16 Bit | ||
| Temperature | -20°-60° | ||
| Life Span | ≥500000 | ||
| Voltage | AC110V/220V, 50HZ/60HZ | ||
Details Showing
The standard 16:9 size cabinet supports front/rear maintenance, back wireless design and seam adjustment.
It has realistic picture, high refresh rate, smaller area and larger resolution display.
Application
government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, clubs, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.
In short, many places need led screens for various purposes, we will do our best to meet trends and needs.
Company Overview
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 20 years.
FAQ
- What is the payment method?
- We support a variety of payment methods, the most common is the TT;
- How about your production ability?
- We have 10 production lines with all series of automatic production machines. Monthly production ability: 200,000pcs of led modules and 4,000sqm of assembled led displays;
- What's the controlling system?
- Our standard controlling system for this model is Novastar.
- Are you manufacturer or trading company?
- We are manufacturer with professional marketing and service team;
- Besides this product, may I have other options?
- Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising player and kinds of video processor;
- Can it play HD video?
- Yes, it can realize HD video function with Linsn/nova controlling system;
Our Service
- Installation service, usually we are not responsible for overseas installation, but we can provide technical support for you. If you need this, we can arrange our technicians to your country, but the cost is paid by the customer.
- Free lifetime maintenance and software upgrades.
- If you have any questions about the led display, we will reply you within 24 hours, and provide maintenance instructions and problem resolution within 48 hours.
- Providing customers with loaders so they can use the display immediately after installation
- Led display, no need to debug
- Free technical training about how to use and process software.
