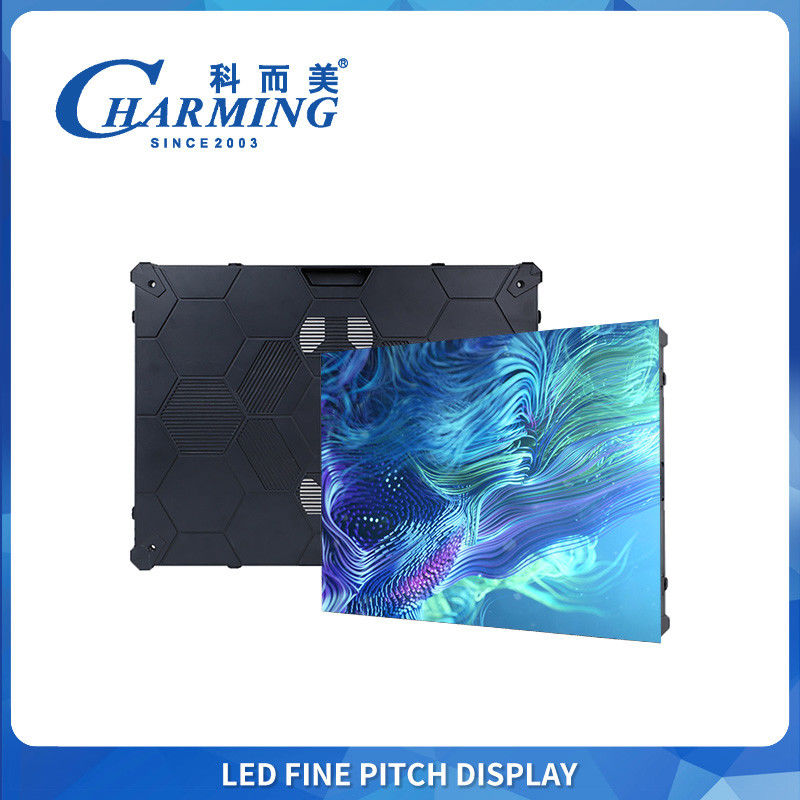

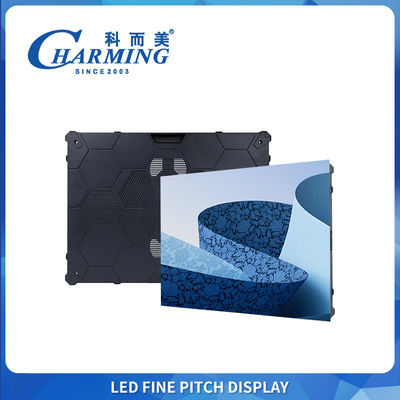

Small Fine Pitch 4K SMD1515 P2.5 HD LED Display Indoor Wall Mounted LED Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | P1.2-2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | Small Pixel Pitch Screen | Application: | Tv Screen/hotel /meeting Room |
|---|---|---|---|
| Color: | RGB Full Color | Refresh Frequency: | 3840HZ 4K |
| Module Size: | 320*160mm SIZE | Cabinet Size: | 640*480*85mm/640*640MM |
| Brightness: | >1200nit | Cabinet Weight: | 6kg |
| High Light: | P2.5 HD LED Display,Small Fine Pitch HD LED Display |
||
Product Description
Small Fine Pitch 4K SMD1515 P2.5 HD LED Display Indoor Wall Mounted LED Screen
Indoor LED Boards Features
- Indoor high definition LED video screen.
- Lightweight die-casting aluminium LED panel.
- Indoor top-level SMD LED lamp.
- High refresh MBI/CH driving IC.
- 4K resolution support easily.
Technical Specification
| Type Number | S1.53 | S1.86 | S2.0 | S2.5 |
| Cabinet Size | 640X480X85MM | 640X480X85MM | 640X480X85MM | 640X480X85MM |
| Pixel Pitch | 1.53MM | 1.86MM | 2.0MM | 2.5MM |
| Screen Brightness | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm |
| Module Size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Screen Resolution | 418*318 | 344*258 | 320*240 | 256*120 |
| Scan Mode | 1/52 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Cabinet Max Power | 200W | 200W | 200W | 200W |
| Refresh Rate | 1920hz/3840hz | |||
| View Angle | 140° | |||
| Weight | 6.5KG | |||
| Material | Die-cast aluminum | |||
| Maintenance | Front Maintenance | |||
| Grey Level | 16 Bit | |||
| Temperature | -20°-60° | |||
| Life Span | ≥500000 | |||
| Voltage | AC110V/220V, 50HZ/60HZ | |||
Details Showing
The standard 16:9 size cabinet supports front/rear maintenance, back wireless design and seam adjustment.
It has realistic picture, high refresh rate, smaller area and larger resolution display.
Application for conference room, hotel, airport, exhibition, presentation, tv station, broadcasting, ...
Company Overview
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 19 years.
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry.
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T, Paypal,alibaba or other is ok .This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
