4K 16/9 Fine Pitch Indoor LED Display Screen P1.8MM P2MM P2.5MM Pixel Pitch
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | Fine pixel pitch |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Dimension(MM): | 640 * 480mm | PixelPitch(MM): | 1.25 MM/ 1.37MM /1.53MM / 1.66 MM/1.86MM/2MM |
|---|---|---|---|
| LED Standard: | Smd 1010 | Scan Mode: | 1/ 64 Scan |
| PixelDensity(Dot/㎡: | 640000 Dot / M² | Max.PowerlW): | 200 W / 180 W |
| CabinetWeight(KG): | 16 KG / 8 KG | Refresh Rate (Hz): | 3840 / 1920 Hz |
| Brightness（CD/㎡）: | 500 CD / ㎡ | Working Temperature: | -20 ~ 60 ℃ |
| High Light: | 4K Fine Pitch LED Display Screen,LED Display Screen P1.8MM |
||
Product Description

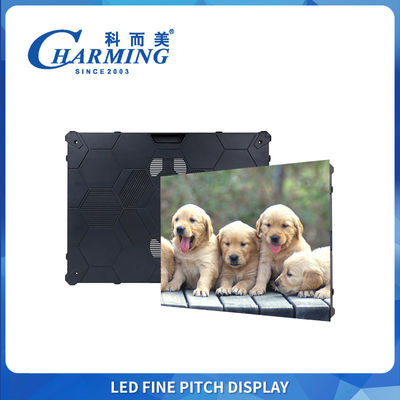

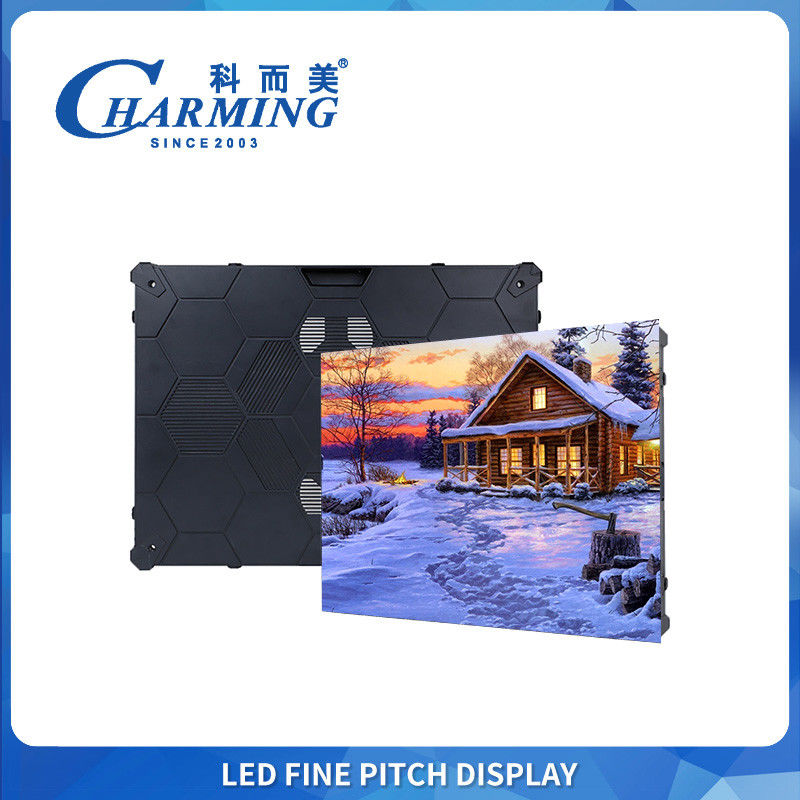

P1.8MM P2MM P2.5MM Pixel Pitch 4K 16:9 Fine Pitch Indoor LED Display Screen
Product introduction:
1)dustproof
2) waterproof
3)Easy Installation
4)Molding cabinet, high precision, easy seamless splicing
5)High gray scale
Product details
2)Rich colors and exquisite picture details
3)Black SMD LED and high grey scalemakes perfect perfomance
4)Fast interlock enables 1-second quick installation including wall-mounting, hanging, and stacking. Full front maintenance saves space & time.
Product parameters
| Dimension(MM) | 640X480X85MM |
| Pixel Pitch(MM) | 1.25MM/1.37MM/1.53MM/1.66MM/1.86MM/2MM |
| LED Standard | SMD1010/SMD1515 |
| Scan Mode | 164Scan |
| Pixel Density(Dot/㎡) | 640000 Dot/㎡ |
| Max.Power(w) | 180W/200W |
| Cabinet Weight(KG) | 8KG |
| Refresh Rate (Hz) | 3840H2 |
| Brightness (CD/m²) | 500CD/㎡ 600CD/㎡ |
| ViewingAngle | 140° |
| Protection Level | IP40 |
| Cabinet Material | Diecast Aluminium |
| Maintenance Method | Front Maintenance |
| Grey Level | 16 Bit |
| WorkingTemperature | -20-60℃ |
| WorkingHumidity | 10%~90%RH |
| Life Span | 50000Hours |
| WorkingVoltage | AC 110V220V,50 60HZ |
Company profile
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
It has obtained nearly 100 patents and obtained ISO9001, CB,CE, CCC,SASO,ROHS and other certifications.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 20 years.
1. How much is the freight ?
The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.
2. What is Price per square meter of screen ?
Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
3. Can I customize it ?
Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
4. What is the warranty ?
1 years Warranty.
5.What is your payment term?
-T/T, Paypal,alibaba or other is ok .This is negotiable.
6.How to choose a best pixel pitch?
Answer: Choose the suitable pixel model according to the closest viewing distance, the smaller the value, the clearer!
