SMD1515 P1.86 HD LED Display Indoor Wall Mounted LED Tv Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | P1.2-2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | Small Pixel Pitch Screen | Application: | Tv Screen |
|---|---|---|---|
| Color: | RGB | Refresh Frequency: | 3840HZ |
| Module Size: | 320*160mm | Maintenance Method: | Front Maintenance |
| Cabinet Size: | 640*480*85mm | Brightness: | >1000nit |
| Max Power: | 145W | Cabinet Weight: | 6.5kg |
| High Light: | P1.86 HD LED Display,SMD1515 HD LED Display |
||
Product Description

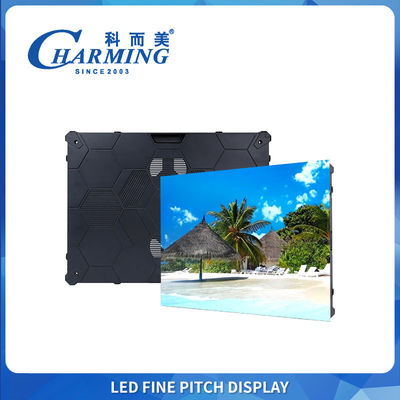

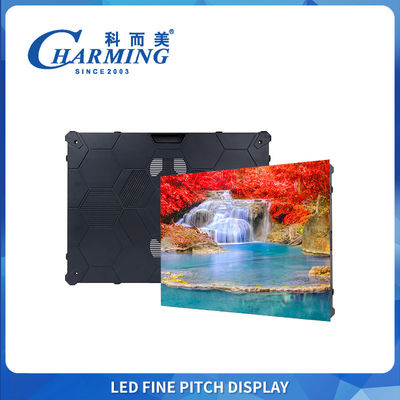

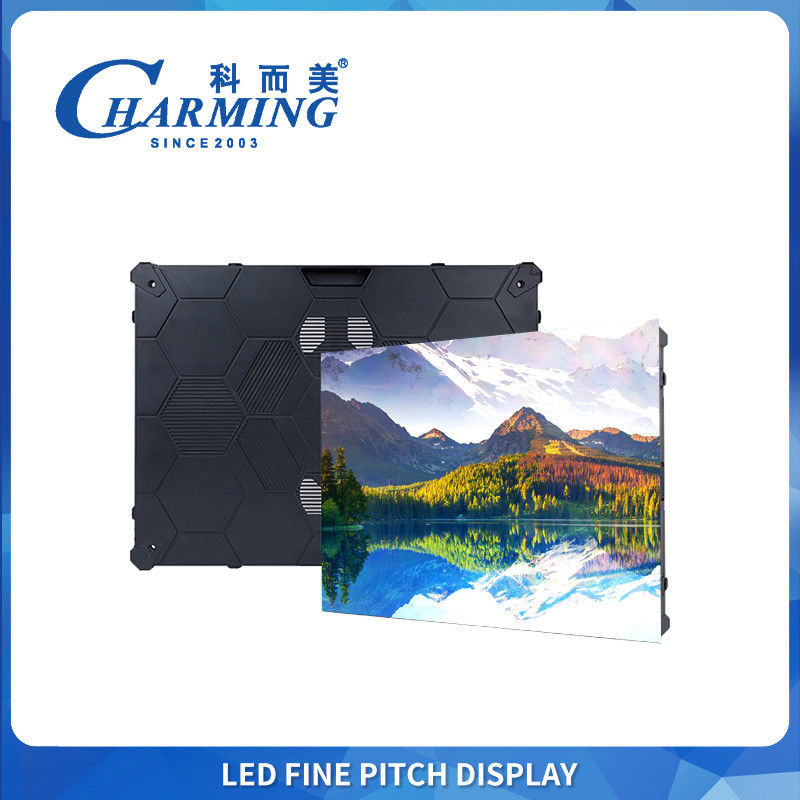

Full Color SMD1515 P1.86 HD LED Display Indoor Wall Mounted LED Tv Screen
Indoor LED Boards Features
- Indoor high definition LED video screen.
- Lightweight die-casting aluminium LED panel.
- Indoor top-level SMD LED lamp.
- High refresh MBI/CH driving IC.
- 4K resolution support easily.
Technical Specification
| Type Number | S1.53 | S1.86 | S2.0 | S2.5 |
| Cabinet Size | 640X480X85MM | 640X480X85MM | 640X480X85MM | 640X480X85MM |
| Pixel Pitch | 1.53MM | 1.86MM | 2.0MM | 2.5MM |
| Screen Brightness | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm |
| Module Size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Screen Resolution | 418*318 | 344*258 | 320*240 | 256*120 |
| Scan Mode | 1/52 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Cabinet Max Power | 200W | 200W | 200W | 200W |
| Refresh Rate | 1920hz/3840hz | |||
| View Angle | 140° | |||
| Weight | 6.5KG | |||
| Material | Die-cast aluminum | |||
| Maintenance | Front Maintenance | |||
| Grey Level | 16 Bit | |||
| Temperature | -20°-60° | |||
| Life Span | ≥500000 | |||
| Voltage | AC110V/220V, 50HZ/60HZ | |||
Details Showing
The standard 16:9 size cabinet supports front/rear maintenance, back wireless design and seam adjustment.
It has realistic picture, high refresh rate, smaller area and larger resolution display.
Application for conference room, hotel, airport, exhibition, presentation, tv station, broadcasting, ...
Company Overview
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 19 years.
Trade Term:
1. Payment: T/T, 40% deposits before production, 60% balance to be paid before shippment.
2. Freight charges are quoted under your requests
3. Warranty time: 2 years.If there is no manmade problems,we will repair for you freely
