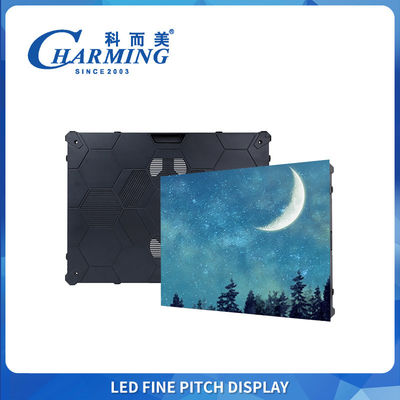

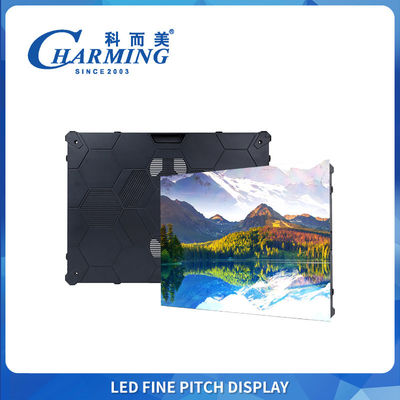

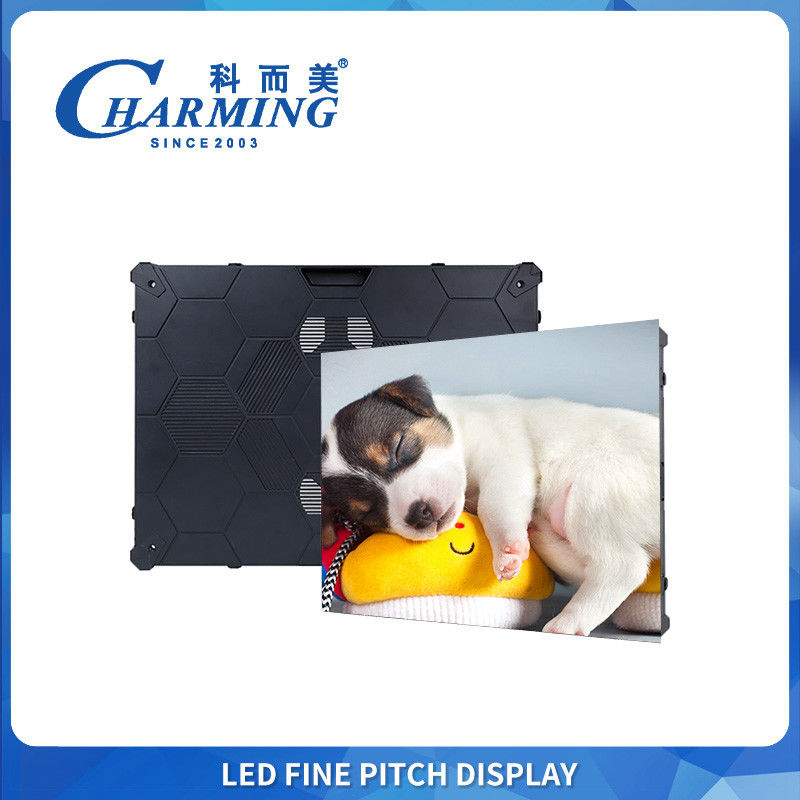

Full Color P1.53 P1.86 P2 P2.5 Fixed Indoor LED Display Panel HD 3840HZ For Exhibition
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | P1.2-2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | Small Pixel Pitch Screen | Application: | Meeting Room |
|---|---|---|---|
| Color: | RGB | Refresh Frequency: | 3840HZ |
| Module Size: | 320*160mm | Maintenance Method: | Front Maintenance |
| Cabinet Size: | 640*480*85mm | Brightness: | >1000nit |
| Max Power: | 145W | ||
| High Light: | P2.5 Fixed Indoor LED Display,Full Color P1.53 Indoor LED Display |
||
Product Description
Full Color P1.53 P1.86 P2 P2.5 Fixed Indoor LED Display Panel HD 3840HZ For Exhibition
Our Advantages
Special heat dissipation design inside out led chip;
Great heat dissipation ability inside out from Drive IC;
Model cover and cabinet adopted die-casting aluminum material Improves the heat dissipation effect, and Drive IC is accompanied with cooling material outside;
Plus the high efficient power supply can decrease heat output;
Technical Specification
| Type Number | S1.53 | S1.86 | S2.0 | S2.5 |
| Cabinet Size | 640X480X85MM | 640X480X85MM | 640X480X85MM | 640X480X85MM |
| Pixel Pitch | 1.53MM | 1.86MM | 2.0MM | 2.5MM |
| Screen Brightness | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm |
| Module Size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Screen Resolution | 418*318 | 344*258 | 320*240 | 256*120 |
| Scan Mode | 1/52 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Cabinet Max Power | 200W | 200W | 200W | 200W |
| Refresh Rate | 1920hz/3840hz | |||
| View Angle | 140° | |||
| Weight | 6.5KG | |||
| Material | Die-cast aluminum | |||
| Maintenance | Front Maintenance | |||
| Grey Level | 16 Bit | |||
| Temperature | -20°-60° | |||
| Life Span | ≥500000 | |||
| Voltage | AC110V/220V, 50HZ/60HZ | |||
Details Showing
The standard 16:9 size cabinet supports front/rear maintenance, back wireless design and seam adjustment.
It has realistic picture, high refresh rate, smaller area and larger resolution display.
Application for conference room, hotel, airport, exhibition, presentation, tv station, broadcasting, ...
