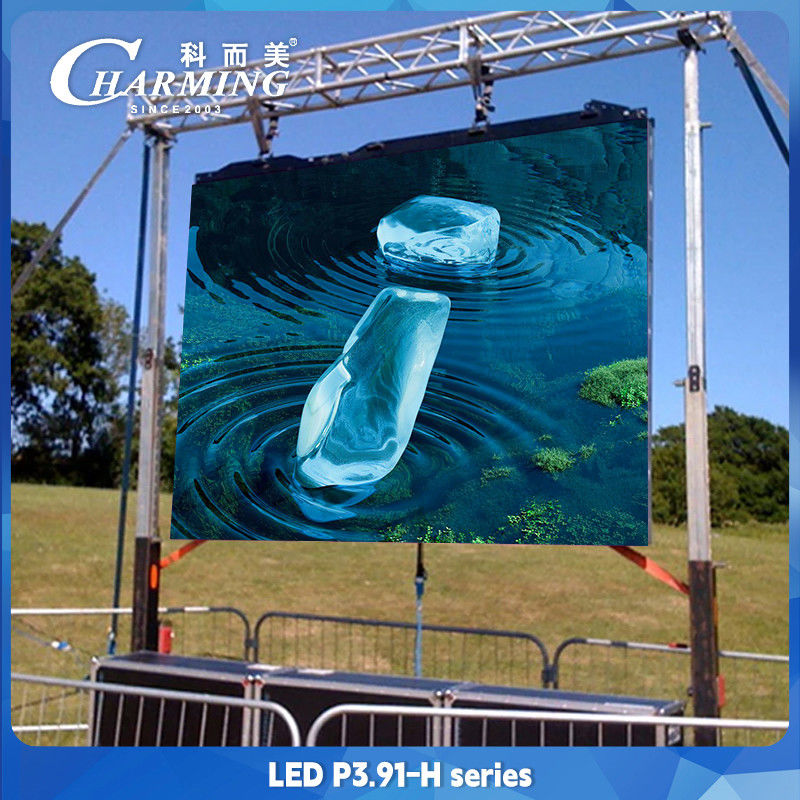

Waterproof Giant P3.91 Stage LED Video Wall Panel Screen For Concert
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | U23-C100 LED Pixel Bar |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case, Fight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 PCS per month |
|
Detail Information |
|||
| Type Number: | R391W-1000H Type | Dimension(MM): | 500×1000×85MM |
|---|---|---|---|
| Cabinet Weight(KG): | 13KG Weight | Refresh Rate（Hz）: | 3840 |
| Pixel Pitch(MM): | 3.91mm | LED Standard: | Smd1921 Standard |
| Scan Mode: | 1/16 Scan | Pixel Density(Dot/㎡): | 65536 Dot/㎡ |
| Brightness（CD/㎡）: | 4500 CD/㎡ | Viewing Angle: | 125° |
| Protection Level: | IP65 | Cabinet Material: | Aluminum Alloy |
| Maintenance Method: | Front Maintenance | Grey Level: | 12-16 Bit |
| Working Temperature: | -20~65℃ | Working Humidity: | 10-90%RH |
| Life Span: | ＞50000 Hour | Working Voltage: | AC 110V/220V,50/60Hz |
| High Light: | P3.91 Stage LED Video Wall,Waterproof Stage LED Video Wall |
||
Product Description
Top Selling Led Panel Video Wall Screen P3.91 Outdoor Led With Video Display Screen
Waterproof Giant P3.91 Stage Led Video Wall Panel Screen For Concert Price,Seamless Splicing, Saving Energy
Product Introduction
1)Full color
2)Adjustable Radian
3)Seamless Splicing
4)Saving Energy
5)HD Display
Product parameters
|
Type Number
|
R391W-500H |
|
Dimension(MM)
|
500x500x85MM |
| Max.Power(w) | 200W |
| Cabinet Weight(KG) | 778KG |
| Refresh Rate (Hz) | 1920/3840H2 |
| Pixel Pitch(MM) | 391MM |
| LED Standard | SMD1921 |
| Scan Mode | 1/6Scan |
| Pixel Density(Dot/ni) | 65536Dot/m² |
| Brightness (CD/ni) | 4500CD/m² |
| Viewing Angle | 120° |
| Protection Leve | IP65 |
| Cabinet Material | Aluminum alloy |
| Maintenance ethod | Front Maintenance |
| Grey Level | 12-16 Bit |
| Working Temperature | -20-60C |
| Working Humidity | 1036-9036RH |
| Life Span | ≥50000 Hours |
| Refresh Rate(Hz) | AC 110W1220V.50/60H2 |
Product details
1)Ingress protection being IP65, weather proof and dust proof.
2)High brightness uniformity and color uniformity(≥95%)

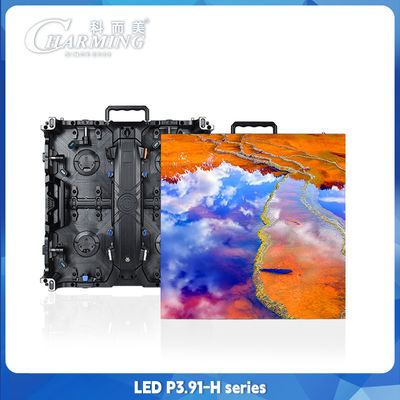

3)Super thin and light with die-casting aluminum cabinet design.
4)made by Aluminum alloy materialStrong rigidity, oxidation resistance,not easy to deform, smoother splicing.
5)Ultra thin , thickness only 85mm. Light weight: 500x500mm Canbinet only 7.78 kg. 500x1000mm Canbinet only 13.2 kg
6)Using gold-plated connection seat, the signal is more stableFoolproof design to reduce installation error rate.
7)The shape is changeable to meet the needs ofmore scenes and give users more choices.
8)Front maintanence. Lock + magnetic fixation to improve safetyHidden module handle, single-person operation
