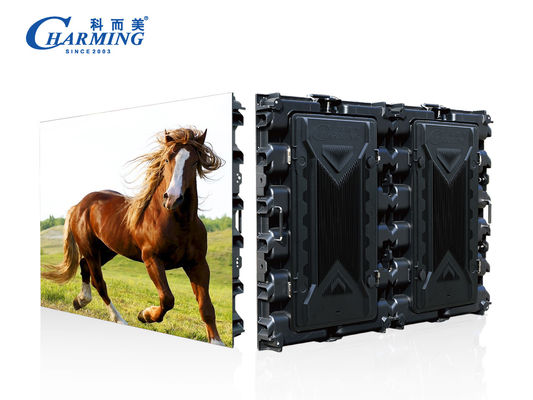

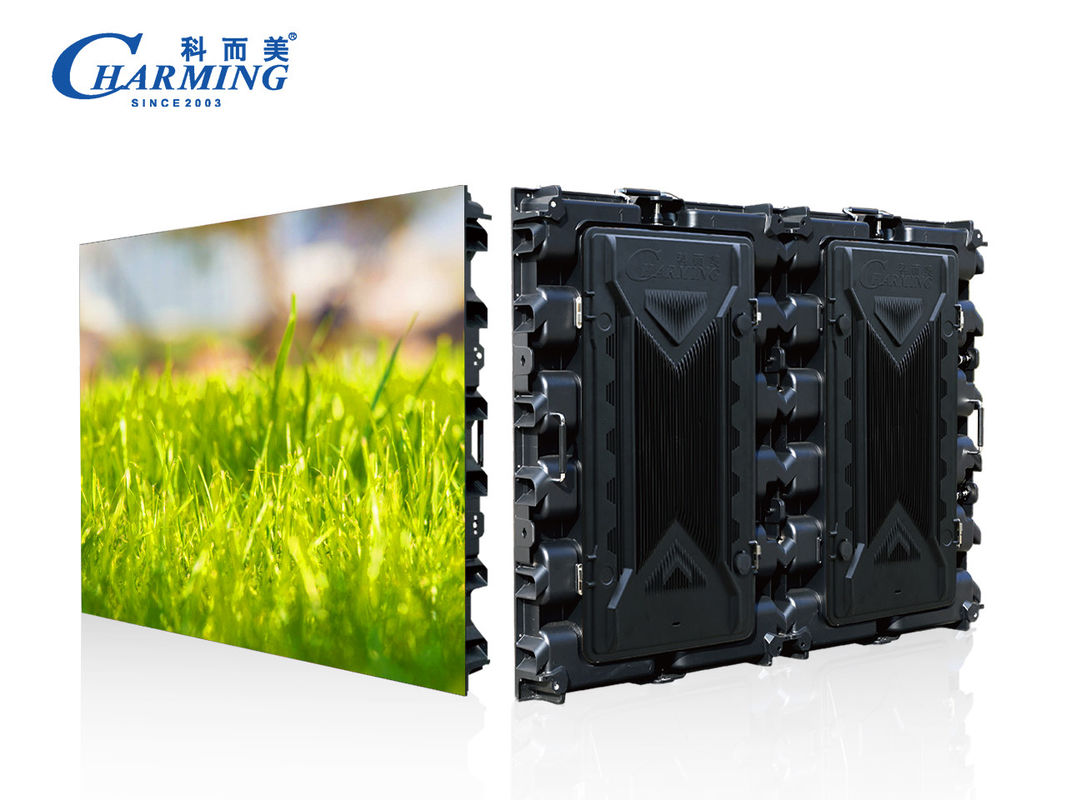

IP65 3D P5 P8 Outdoor LED Video Wall LED Signage Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P5-P8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Keyword: | P5, P8 Outdoor Led Video Wall LED Signage Display | Pixel Pitch: | P5mm |
|---|---|---|---|
| Refresh Rate: | 1920HZ-3840HZ | IP Rate: | IP65 |
| Resolution: | 256x192 | Panle Size: | 960/640/1280x960mm |
| Brightness: | ≥6000CD/M² | Weight: | 38.5kg |
| Warranty: | 2 Years | ||
| High Light: | P8 Outdoor LED Video Wall,IP65 Outdoor LED Video Wall |
||
Product Description
IP65 3D High Quality P5, P8 Outdoor Led Video Wall LED Signage Display
Product Description
3. Energy Efficiency: Outdoor LED signage displays are known for their energy efficiency compared to other display technologies. LEDs consume less power while delivering bright and dynamic visuals, resulting in cost savings and reduced environmental impact.
-
1. Weather Resistance: Outdoor LED signage displays are built to withstand various weather conditions, including rain, snow, direct sunlight, and temperature fluctuations. They are typically housed in weatherproof enclosures that protect the internal components from environmental elements.
-
-
2. Pitch/Pixel Density - Outdoor displays have a higher pixel density/pitch compared to indoor displays to ensure images and text remain sharp and legible from a distance in outdoor lighting conditions. Typical pixel pitches are around 5-8mm.
-
Technical Specifications
|
Type Number |
M4 |
M5 |
M8 |
|---|---|---|---|
|
Pixel Pitch |
4.0mm
|
5.0mm |
8.0mm |
|
Pixel Density |
62500 Dot/㎡
|
40000 Dot/㎡ |
15625 Dot/㎡
|
|
Scan Type |
1/10 Scan
|
1/8 Scan |
1/5 Scan |
|
Brightness
|
≥5000CD/㎡
|
≥6000CD/㎡
|
≥5500CD/㎡
|
|
Best Viewing Distance
|
≥4M
|
≥5M
|
≥8M
|
| Cabinet Resolution | 320x240 | 256x192 | 160x120 |
| Color | RGB | ||
|
Refresh Rate(Hz) |
3840Hz / 1920Hz |
||
| Cabinet Size | 1280x960mm | ||
|
Module Size |
320x160mm |
||
|
Cabinet Max Power |
1200W |
||
|
Viewing Angle |
130° |
||
|
IP Rate |
IP65 |
||
| Life Span | 100,000 h | ||
|
Cabinet Material |
Magnesium/Aluminum Alloy |
||
|
Maintenance |
Front/Back Service |
||
|
Working Temperature |
-30~60℃ |
||
|
Working Humidity |
10%~90%RH |
||
|
Life Span |
≥50000 Hours |
||
|
Working Voltage |
AC110V/220V, 50/60HZ | ||
| Weight | 38.8kg | ||
Detail Showing
Competitive advantages:
Outdoor LED video walls offer a visually stunning and versatile solution for large-scale outdoor displays, allowing for impactful advertising, engaging visual experiences, and effective communication in various outdoor settings.
Applications:
-
Remote Management: Many outdoor LED signage displays come with remote management capabilities, allowing operators to control and monitor the display's performance from a central location. This enables real-time content updates, scheduling, monitoring, and troubleshooting.
-
-
Public Information: LED displays can be used to disseminate public information, such as announcements, emergency alerts, transportation schedules, and community messages.
About US
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 17 years.
What we offer to customer?
1. Indoor Led Screen Solution
- Indoor Rental / Fixed Led Screen Solution
- All-in-one Led TV Solution
- Video Conference System
- Immersive & 3D Led Display Solution
2. Outdoor Led Screen Solution
- Indoor Rental / Fixed Led Screen Solution
- All-in-one Led Advertising Sign
- All-in-one Commercial Led Display System
- Led Billboard Solution
3. Structure Design
- Wall Mounting Structure
- Rental Stack & Floor Stand Structure
- Electric Lifting & Rotating System
4. Customized Led Solution
- Spherical Led Screen Solution
- Cubic Led Screen Solution
- Right angle Led Screen Solution
- Led Video Floor Screen Solution
- Customzed Shape Led Screen Solution
